Raymarine HV-100 Transom Mount 7-in-1 Transducer with HyperVision

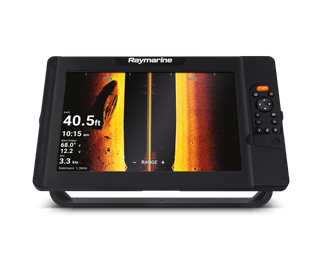

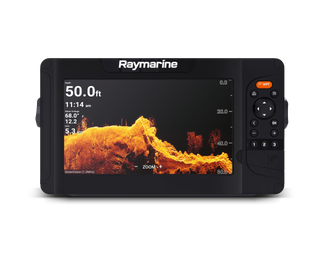

Pair the HV-100 Transom Mount transducer with your Raymarine Element HV for excellent underwater images and water temperature. Using multiple CHIRP frequencies based around 200kHz/350kHz and 1.2Mhz this transducer will provide detail to 900' below your boat!
Features
- 1.2MHz HyperVision: Provides super high resolution up to 125' in downvision and sidevision modes.
- 350kHz Standard Imaging: Provides great resolution and range up to 600' down and 300' side
- High CHIRP Conical Sonar: Marks fish and track bottom at speed to 900' below your boat
- HyperVision Overlay: Overlay on RealVision 3D for high level of resolution and positional awareness
Power
- 1.2 MHz (Hyper) = 1000 W
- 350 kHz (Standard) = 700 W
- 200 kHz (Conical high CHIRP sonar) = 100 W
Frequencies
- 1.2 MHz CHIRP
- 350 kHz CHIRP
- 200 kHz CHIRP
Channels
- Conical high CHIRP sonar
- RealVision™ 3D (Hyper)
- RealVision™ 3D (Standard)
- SideVision™ (Hyper)
- SideVision™ (Standard)
- DownVision™ (Hyper)
- DownVision™ (Standard)
200 kHz range
- Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
350 kHz (Standard) range
- RealVision™ 3D = 0.6 M (2 ft) to 91 m (300 ft)
- SideVision™ = 0.6 M (2 ft) to 91 m (300 ft) each side
- DownVision™ = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) range
- RealVision™ 3D = 0.6 M (2 ft) to 38 m (125 ft)
- SideVision™ = 0.6 M (2 ft) to 38 m (125 ft) each side
- DownVision™ = 0.6 M (2 ft) to 38 m (125 ft)
