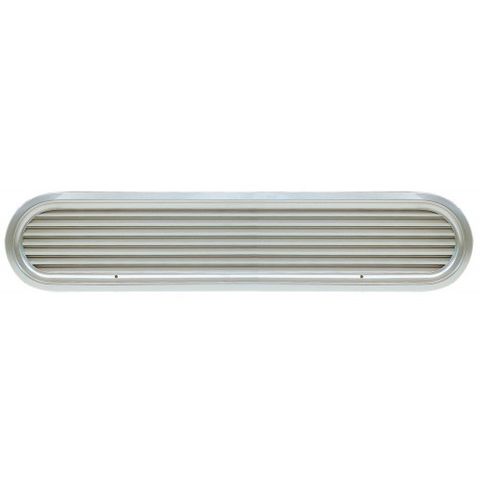

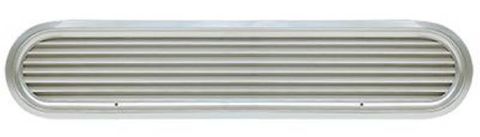

Vetus Louvred Suction Vent, ASV

HTML Editor - Full Version

Vent frame is polished Aluminum and grilles are naturally anodised aluminium.

A marine diesel engine needs sufficient air in order to function correctly. In addition to combustion air, the engine also requires sufficient ventilation air to dissipate the radiated heat. The volume of ventilation air required is about the same as the combustion air needed.

The model number relates to the horsepower the vent is suitable for.

Code	Product Details	Enquire
ASV020A	20HP, 300 x 117mn	Make an Enquiry
ASV025A	25HP, 350 x 117mm	Make an Enquiry
ASV030A	30HP, 360 x 130mm	Make an Enquiry
ASV040A	40HP, 450 x 130mm	Make an Enquiry
ASV050A	50HP, 490 x 146mm	Make an Enquiry
ASV060A	60HP, 570 x 146mm	Make an Enquiry
ASV070A	70HP, 590 x 159mm	Make an Enquiry
ASV080A	80HP, 660 x 159mm	Make an Enquiry
ASV090A	90HP, 670 x 172mm	Make an Enquiry
ASV100A	100HP, 730 x 172mm	Make an Enquiry
ASV150A	150HP, 890 x 198mm	Make an Enquiry

	ASV020A	ASV025A	ASV030A	ASV040A	ASV050A	ASV060A	ASV070A	ASV080A	ASV090A	ASV100A	ASV150A
Free Flow Area IN DM:	0.83	1.00	1.22	1.59	2.02	2.41	2.83	3.21	3.63	4.00	6.08

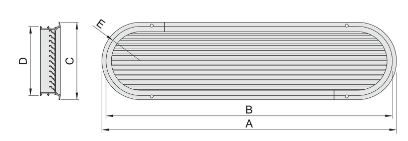

Length A (mm):	300	350	360	450	490	570	590	660	670	730	890
Length B Cut-Out (mm):	280	330	340	430	470	550	570	640	650	710	870
Length C (mm):	117	117	130	130	146	146	159	159	172	172	198
Length D Cut-Out (mm):	97	97	110	110	126	126	139	139	152	152	178
Length E Cut-Out Radius (mm):	45.5	48.5	55	55	63	63	69.5	69.5	76	76	89

ASV Air Suction Vent Installation Instructions
