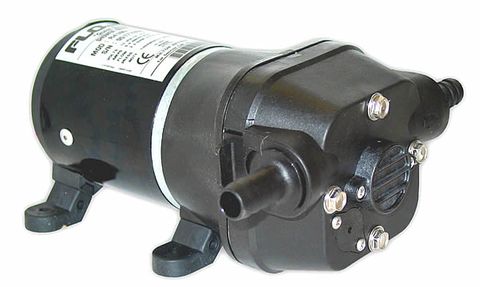

Flojet Circulation Pump

Flojet Circulation Pump

4105 Series self-priming diaphragm pump available with 12V or 24V DC electric motor.

Self-primes up to 6ft vertical lift. Runs dry without damage to the pump. Quick-connect plug-in ports for easy installation with 13mm hose barbs as standard. Additional style ports are available as accessories.

As a self-priming feeder pump, the 4105512 and 4105524 are designed to maintain a steady supply of water to an R.O. unit or similar. As a self-priming low flow refrigeration circulation pump the 4105512 and 4105524 are designed to eliminate air locks and loss of prime when the boat heals or is in rough seas

*These products are end of line. Once stocked out, it will no longer be available.*

Code Image Product Details Enquire
04105512A
Flojet Circulation Pump
12 VDC, 5.7 LPM
Make an Enquiry
04105524A
Flojet Circulation Pump
24 VDC, 7.5 LPM
Make an Enquiry

Connections: - for 15mm (½") bore hose

Dimensions: - 208mm long, 160mm wide, 100mm high

Fuse Size: - 1.5(amp)

Output: - up to 6 litres/minute (1.3 gallons/minute) at 1m (3ft) head.

For general purpose pump

Continuously rated motor with thermal overload protection

Multiple diaphragm design allows extended dry running

Self-primes up to 1m vertical lift

Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm

Actual Weight: 2.11 Kg  (Approx. 2.61 Kg packed)
