Flojet Air Operated Pump

Flojet Air Operated Pump

Flojet Air or CO2 driven diaphragm pumps are available in a range of flow rates, pressure rates and material make up to suit your requirements.

Pumps can be run dry with-out failure and can handle liquids up to 49’C.

Pumps have a corrosion resistant sanitary design and are self-priming.

Code Image Product Details Enquire
05100020A
Flojet Air Operated Pump
Viton, 3/8 Barb, Variable up to 7.3 LPM, Max Pressure 5.2bar (75psi)
Make an Enquiry
G573205A
Flojet Air Operated Pump
Viton, 3/8 Barb, 26.5 LPM, Max Pressure 6.9bar (100psi)
Make an Enquiry
G575215A
Flojet Air Operated Pump
Santoprene, 1/2 Barb, 26.5 LPM, Max Pressure 6.9bar (100psi)
Make an Enquiry

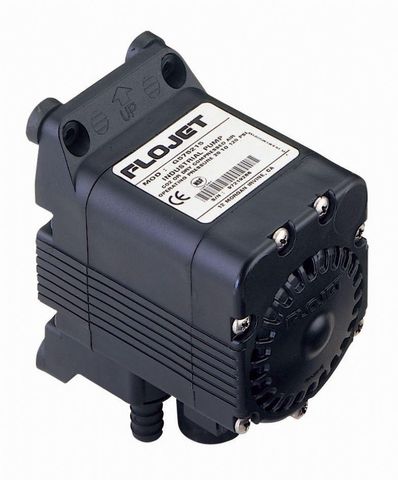

PN: G573205A & G575215A

Connections

  • Viton: Fluid, 9.5mm (3/8") hose - Air, 6mm (1/4") hose
  • Santoprene: Fluid, 15mm (1/2") hose - Air, 6mm (1/4") hose

Dimensions: - 116mm long, 82mm wide, 115mm high

Output: up to 26.5 litres/minute (5.9 gallons/minute). Maximum pressure 6.9bar (100psi)

Capable of passing solids up to 3.2mm diameter

Corrosion Resistant Sanitary Design

Self-priming up to 4.5m

Pump can run-dry and handle liquids up to 49ºC (120ºF)

Max. Air Supply Pressure 6.9bar (100psi)

Packaged Dimensions: L:15.00 x H:15.00 x W:12.00cm

Actual Weight

  • Viton: 0.72 Kg  (Approx. 0.97 Kg packed)
  • Santoprene: 0.68 Kg (Approx. 0.93 Kg packed)

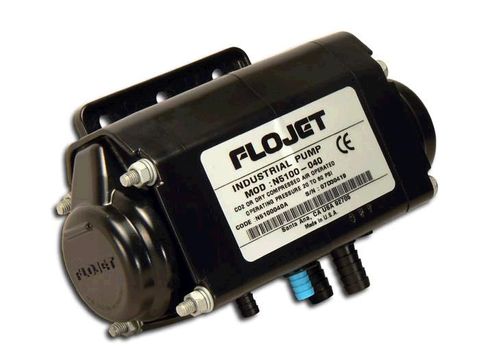

PN: 05100020A

Connections: Fluid, 9.5mm (3/8") hose - Air, 6mm (1/4") hose

Dimensions: 152mm long, 60mm wide, 102mm high

Output: infinately variable, up to 7.3 litres/minute (1.6 gallons/minute). Maximum pressure 5.2bar (75psi)

Auto demand starts pump when discharge valve is opened

Self-priming

Pump can run-dry and handle liquids up to 49ºC (120ºF)

Max. Air Supply Pressure 5.6bar (80psi)

No switch or bypass required

Actual Weight: 0.62 Kg  (Approx. 0.87 Kg packed)
