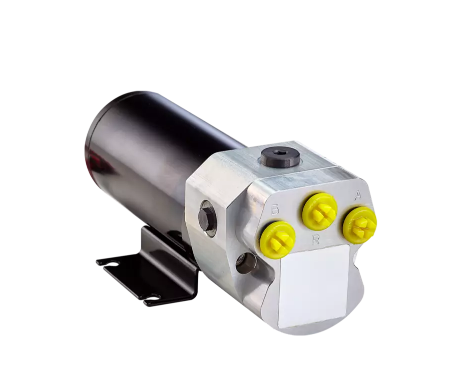

Raymarine Autopilot Hydraulic Pump

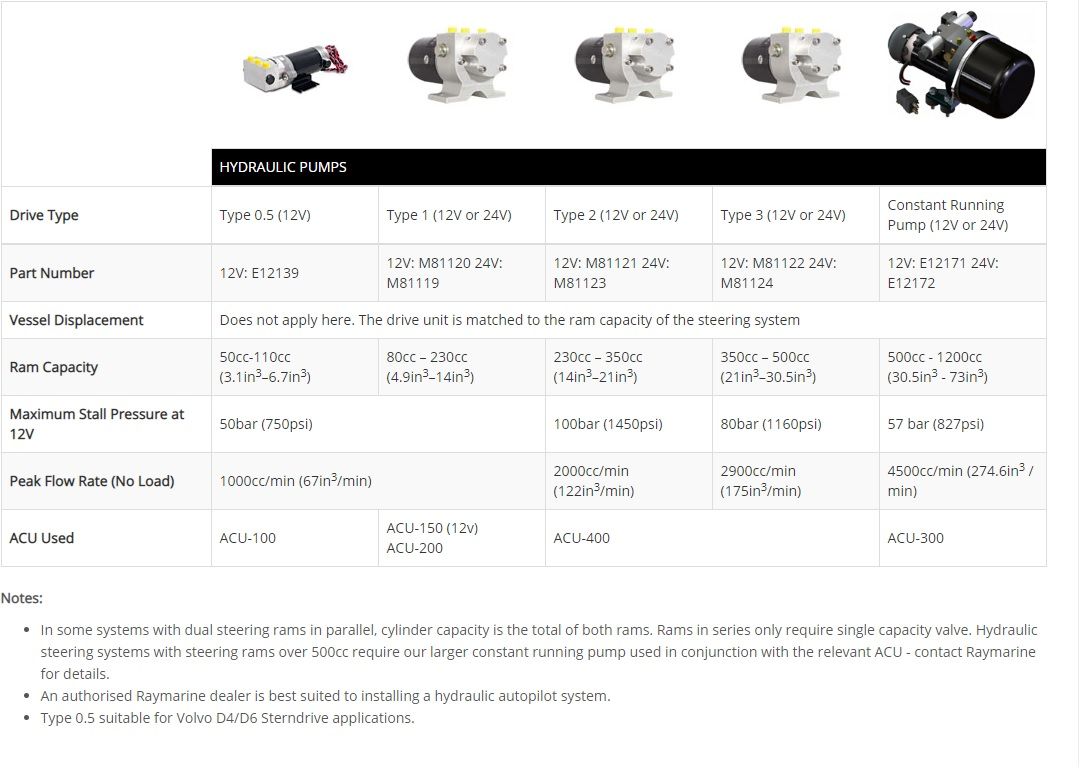

Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system. To calculate the drive unit needed, you will need the size (in cc) of the hydraulic cylinder(s) mounted to the rudder or inboard engine, or the drive unit on your outboard. Info on which drive is right for you is available in the downloads section below. Alternatively if you know the brand and model of the hydraulic cylinder, click the cross reference chart in the downloads section
Related Products
-
ACU-100, 12V ONLY, to suit ST4000 Wheel and Tillor Pilots, and Type 0.5 Hydraulic PumpE70098
-

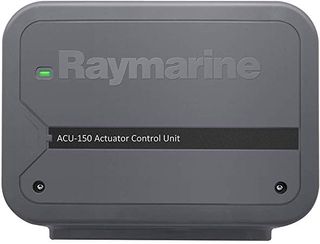

ACU-200, 12V OR 24V, To suit Type 1 Hydraulic Rotary and Mechanical Linear DrivesE70099
-
