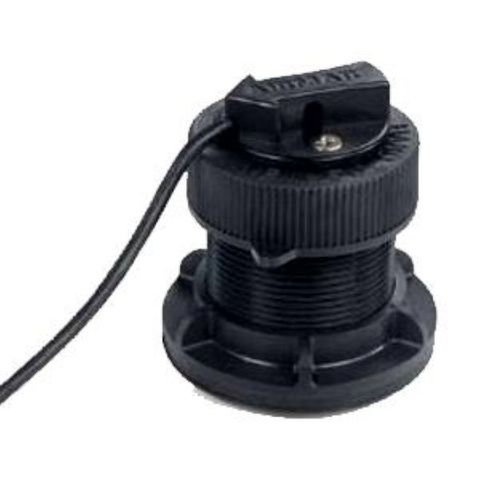

Raymarine P7 Shorty Thru-Hull Transducer

Raymarine P7 Shorty Thru-Hull Transducer

HTML Editor - Full Version

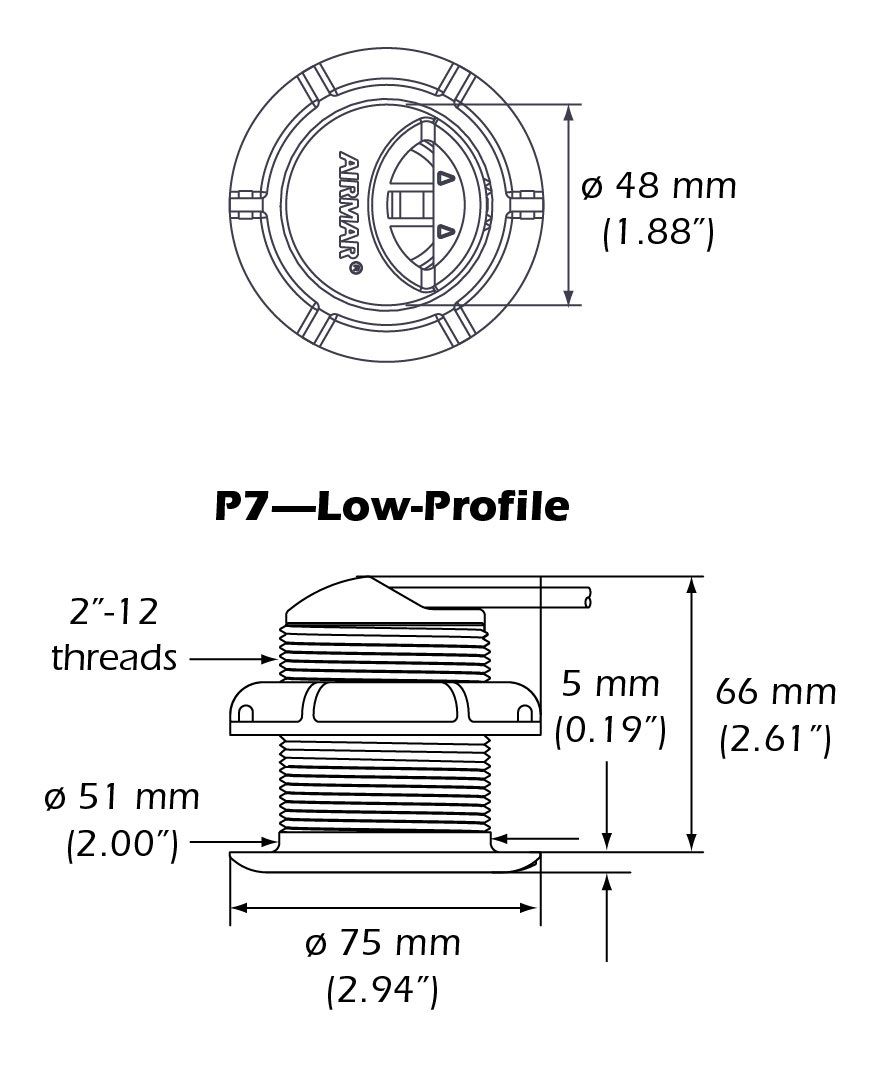

The P7 is the best performers in the Shorty™ Series designed for boats with limited headroom. Large, sensitive ceramics allow deeper echo-sounding. The low-profile P7 plastic, depth, model is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull.

Compatible hull material aluminium and fiberglass. Cable 9m (30ft) cable with connector. Hole diameter for installation: 2"

Code Image Product Details Enquire
E26009
Raymarine P7 Shorty Thru-Hull Transducer
ST40
Make an Enquiry
E26021
Raymarine P7 Shorty Thru-Hull Transducer
ST30
Make an Enquiry

Style: Thru-Hull

Hull deadrise: 0-12° optimum , 20° max

Cable Length: 33' (10m)

Monitors: Depth only or Depth and temperature

Material: Plastic, Urethane acoustic window

Compatible hull material: Aluminium and fiberglass

Transmit Power: 350W

Frequency: 200kHz

Depth: 176m (600')

Beam width: 235kHz: 11°



NOTE: P7 housing—cruising sailboats and planing powerboats
