Raymarine P66 600W Depth, Speed and Temp. Transom Transducer

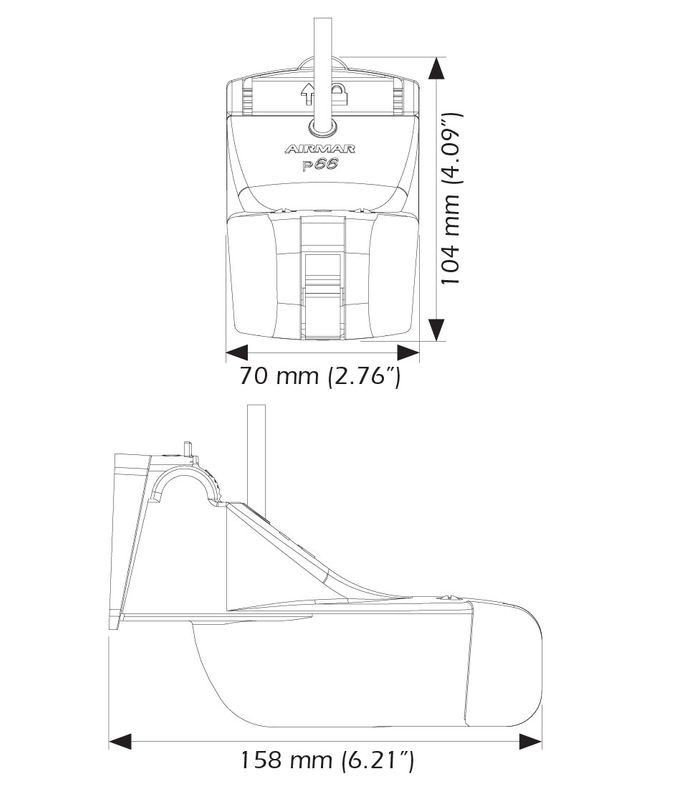

The P66 TRIDUCER® Multisensor transom-mount features our 50/200 kHz, dual-frequency, single ceramic element. This hydrodynamic housing with a rounded nose reduces the turbulence under the transducer’s face for accurate high speed readings and clear display images.
Features
- Depth/Speed/Temp
- Dual frequency: 200/50 kHz
- Compatible with Raymarine ST40, i40, ST60, i50, ST290, ST70* and i70*
NOTE: Use with an ST70 or an i70 instrument requires use of an iTC5 Instrument Transducer Converter (E70010)
Style: Transom Mount
Transom angle: 2° and 20°
Cable: 30 ft. (9m)
Monitors: Depth, speed, and temperature in one housing
Material: Plastic, Urethane acoustic window
Compatible Hull Materials: Metal, wood and fiberglass
Transmit Power: 600W
Frequency: 50/200 kHz
Max. Depth:
- 50kHz: 1,200'
- 200kHz: 700'
Beam width:
- 50kHz: 45°
- 200kHz: 12°
Connector: Spade connector for Raymarine instruments
