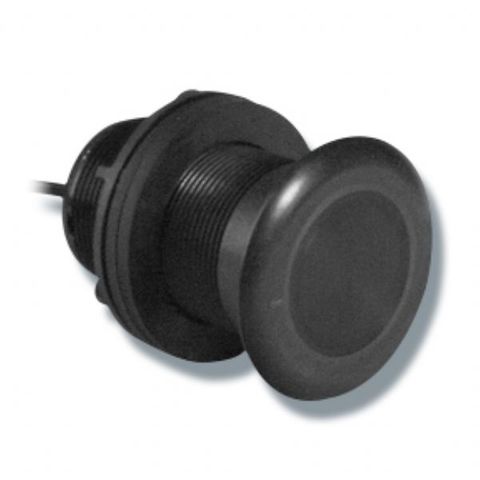

Raymarine P319 600W Depth & Temp Plastic Thru-Hull Transducer
The Raymarine P319 Low-Profile Transducer is a 600W thru-hull low-profile depth transducer with a plastic housing that operates at 50kHz and 200kHz. The P319 is designed for installation only in the flat bottom of a boat. It does not have any built-in tilt for deadrise compensation.
This transducer is for Raymarine sounders and fishfinders that use the DSM/CP370 transducer connector.
Style: Thru-Hull
Deadrise angle: Best performance through 7°. Can accommodate up to 12°.
Cable Length: 30' (9m)
Boat Size: Up to 8 m (25')
Monitors: Depth/temp
Material: Plastic, Urethane acoustic window
Compatible Hull Material: Fiberglass or metal
Transmit Power: 600W
Frequency: 50/200kHz
Depth:
- 50kHz: 1,200'
- 200kHz: 700'
Beam width:
- 50kHz: 45°
- 200kHz: 12°
NOTE: E66066 adaptor cable required for connection to xx7 MFDs.
