Raymarine Evolution Autopilot Sensor Cores

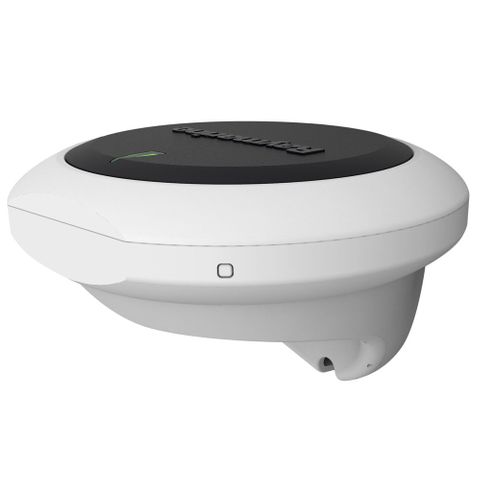

At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

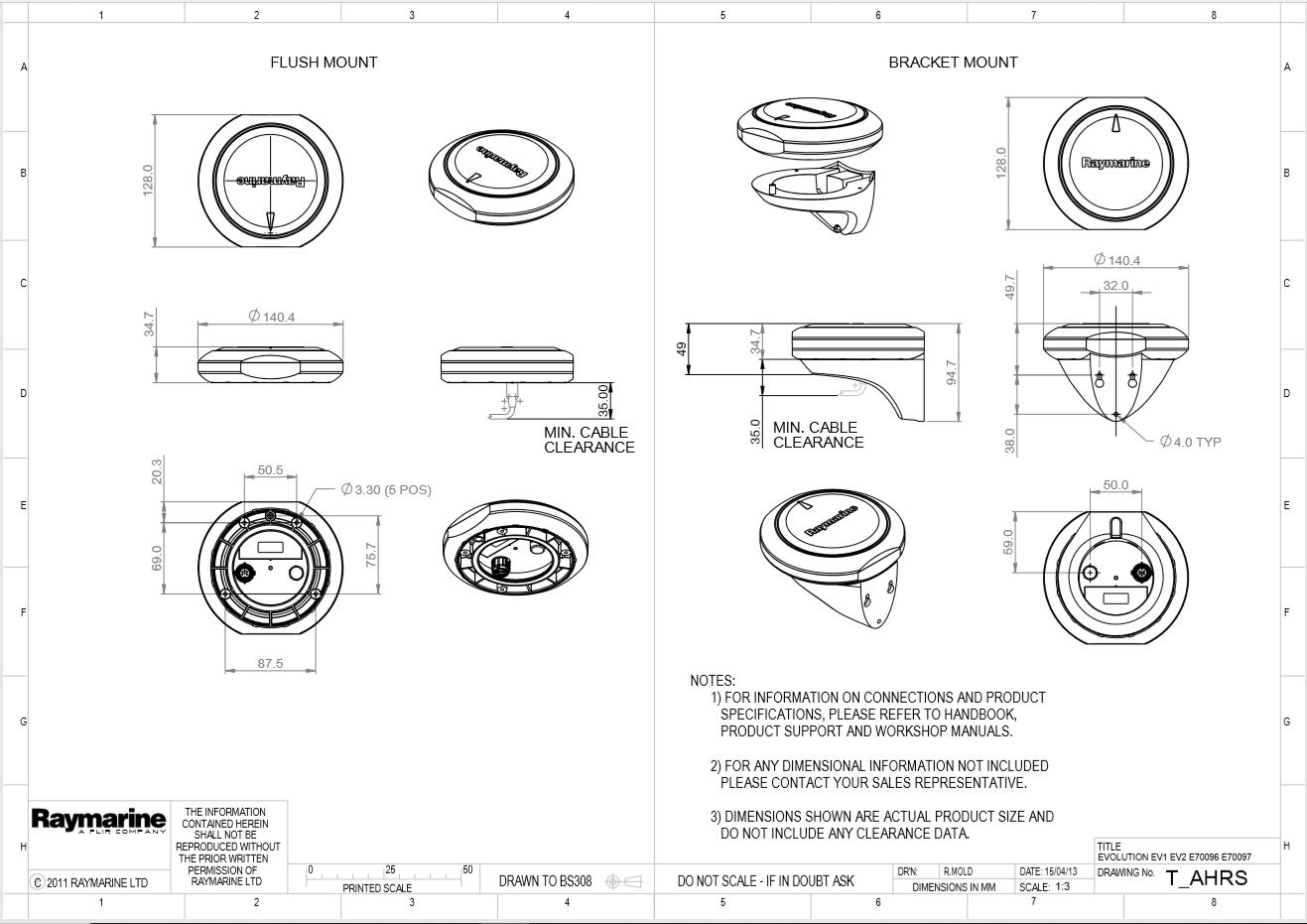

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 waterproofing and submersion standards.
