Raymarine CP470 Clearpulse CHIRP Sonar Module

Engineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high-resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish, tracking the sea floor down to 3,000m (10,000ft) with two adjustable CHIRP sonar channels.

With 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filters out unwanted noise so you never miss the action below.

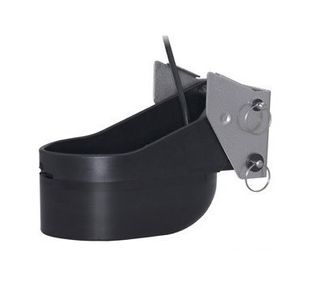

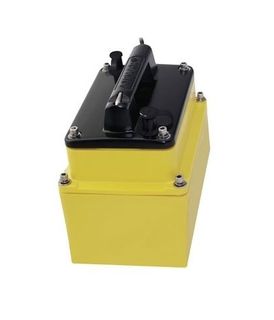

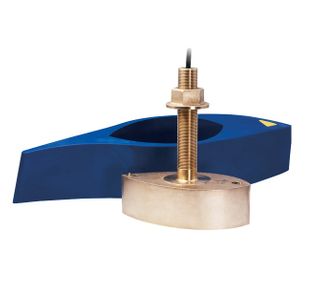

Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performance. View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II/III powered multifunction displays.
