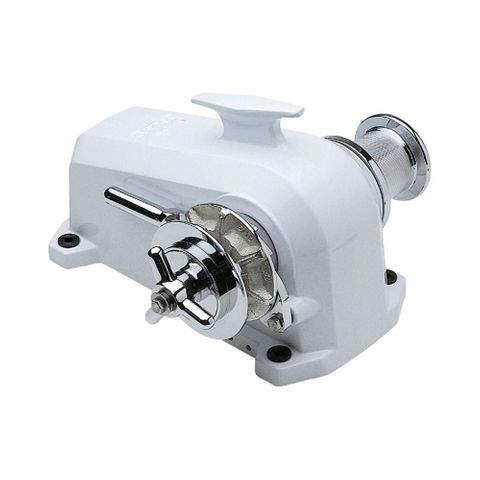

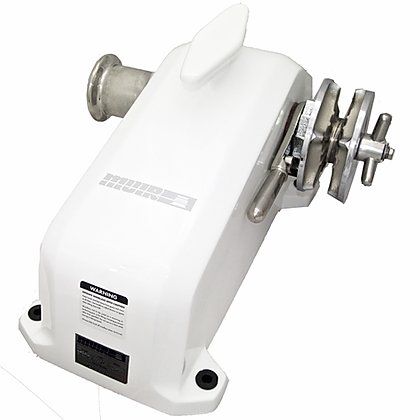

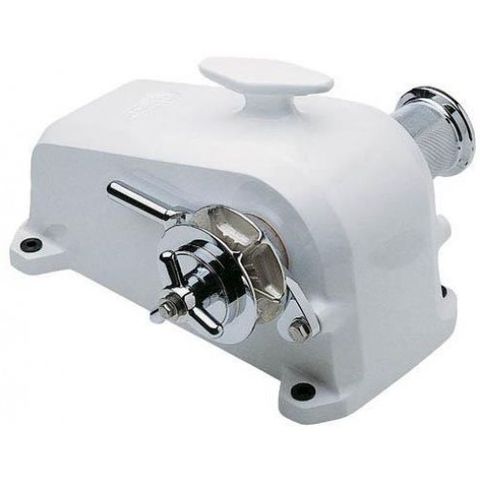

Muir Horizontal Jaguar Windlass

Muir Horizontal Jaguar Windlass

The HR3500 Jaguar horizontal windlasses are designed for vessels up to 20m and are ideal for installations where the chain box is not easily accessible. These windlasses are completely above deck and have a long-life marine aluminium alloy housing and a powerful high-performance motor with a high-quality Italian gearbox. The housing protects the motor and gearbox from the harsh weather.

Standard Features:

  • Manual operation is standard on all HR3500 units ensuring complete back up
  • Gypsy lock/pawl
  • Heavy duty marine grade, dual direction motors in 12 or 24V DC (optional AC & Hydraulic)
  • Durable marine grade white gloss finish on alloy housing
  • Luxury chromed marine grade bronze & 316 Stainless steel running gear
  • Stainless steel drive shaft
  • 3 Year Limited Warranty

Options Include:

  • Left or right handed
  • Twin gypsy, twin capstan
  • Rope Chain Management System (RCMS)
  • Housing without cleat

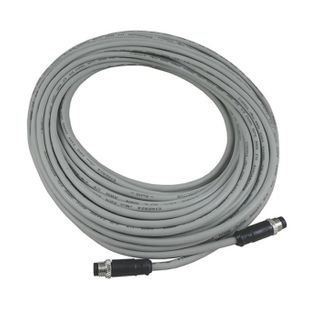

  • Auto anchor chain counter



Code Image Product Details Enquire
F061058
Muir Horizontal Jaguar Windlass
12V, 10mm Chain #99
Make an Enquiry
F061070
Muir Horizontal Jaguar Windlass
24V, 13mm Chain #131
Make an Enquiry
F061212
Muir Horizontal Jaguar Windlass
12V, 8mm SL Chain, 14-20m Boat Length
Make an Enquiry
HR35001213
Muir Horizontal Jaguar Windlass
12V, 13mm SL Chain, 14-20m Boat Length
Make an Enquiry
HR35002408
Muir Horizontal Jaguar Windlass
24V, 8mm SL Chain, 14-20m Boat Length
Make an Enquiry
HR35002410
Muir Horizontal Jaguar Windlass
24V, 10mm SL Chain, 14-20m Boat Length
Make an Enquiry
HR35002413
Muir Horizontal Jaguar Windlass
24V, 13mm SL Chain, 14-20m Boat Length
Make an Enquiry
