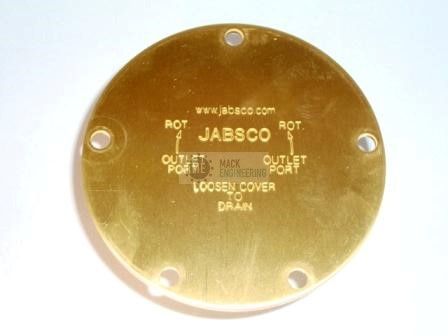

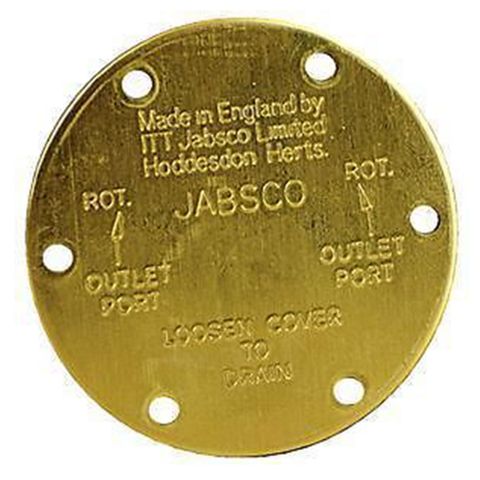

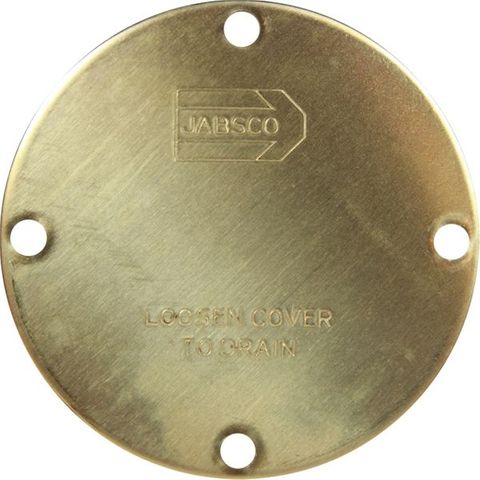

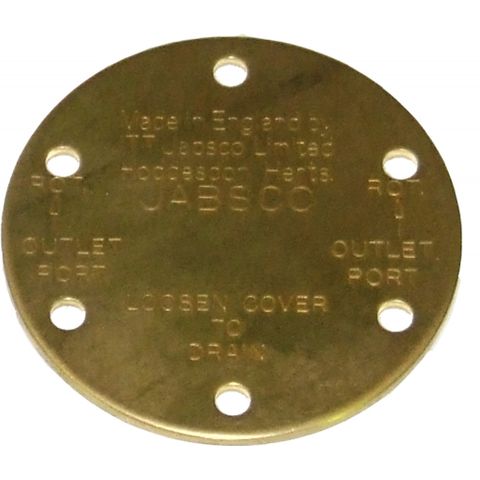

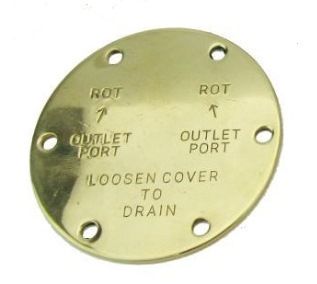

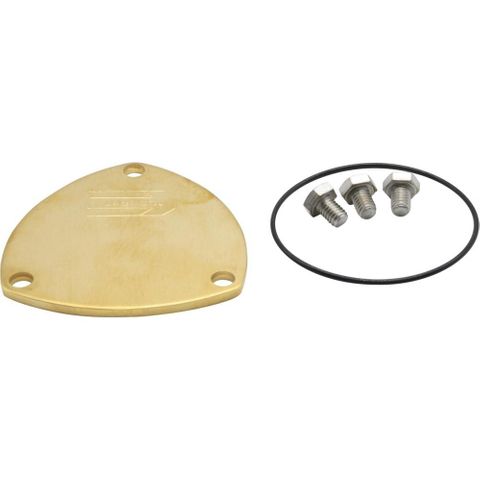

Brass end cover to fit Jabsco pump.

Code Image Product Details Enquire
3992
Jabsco End Covers
020/040/060 Series, 6 Screw Hole, 76mm OD
3993
Jabsco End Covers
080/120, 6 Hole, 86mm
9336
Jabsco End Covers
200/270 Series, 5 Screw Hole, 117mm OD
9566
Jabsco End Covers
10 Series, 6 Hole, 58.8mm OD
11835-0000
Jabsco End Covers
010, AL6-200, 6 Hole, 62.7mm OD
11836-0000
Jabsco End Covers
6 hole
12071-0000
Jabsco End Covers
020, 3 Hole
18753-0355
Jabsco End Covers
Pureflo 040
22007-0000
Jabsco End Covers
Pureflo 500
23825-0000
Jabsco End Covers
23820 / 53040, 4 Hole, 82mm OD
28305-0020
Jabsco End Covers
Pureflo, 080
28505-0020
Jabsco End Covers
Pureflo, 370

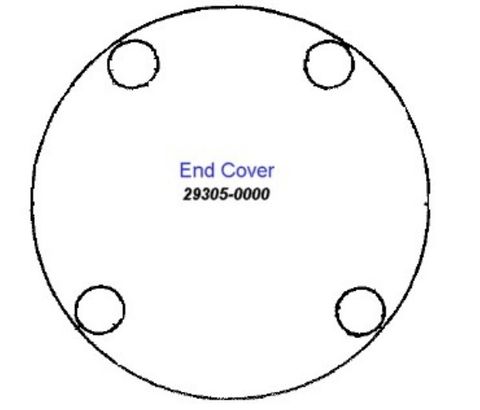

29305-0000
Jabsco End Covers
10
29305-0100
Jabsco End Covers
010 for 51510
29475-0000
Jabsco End Covers
020, 6 Hole
50355-0000
Jabsco End Covers
52579 Series, 4 Screw Hole, 97mm Diameter
50416-0000
Jabsco End Covers
060, for 50410
SK501-0000
Jabsco End Covers
51520 Pump

How to select the correct end cover if you don't have a part number:

  1. If you have the End Cover:
    Go to the "Manuals and Resources" tab
    Click on "Pump End Covers and Wear Plates"
    Lay your plate on the profiles and select the correct model

  2. If you don't have the End Cover or its not on the sheet above:
    Go to the "Manuals and Resources" tab
    Click on "Pump Spares by Pump Number"
    Find your pump number and select correct plate
