Tinned Shorepower AC Cable - Survey Approved

Tinned Shorepower AC Cable - Survey Approved

Ultra Performance Flexible Cable Double Sheath 0.6/1kV 90°C

Code Image Product Details Enquire
HD03-1.5T

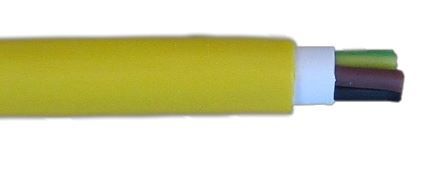

Tinned Shorepower AC Cable - Survey Approved
3C-1.5mm, 230VAC, YLW, Per Meter
Make an Enquiry
HD03-2.5T

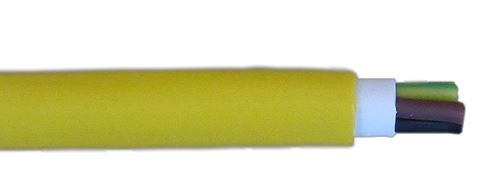

Tinned Shorepower AC Cable - Survey Approved
3C-2.5mm, 230VAC, YLW, Per Meter
Make an Enquiry
HD03-6.0T

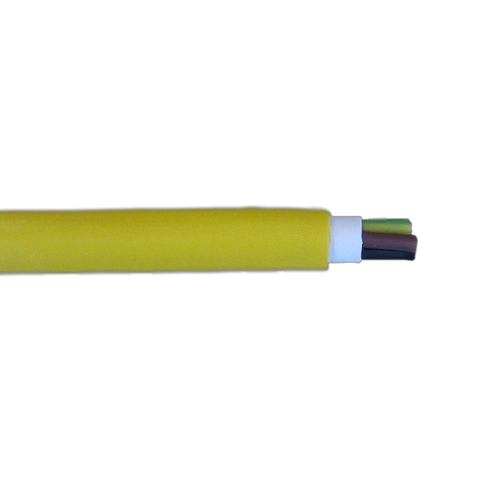

Tinned Shorepower AC Cable - Survey Approved
3C-6.0mm, 230VAC, YLW, Per Meter
Make an Enquiry
HD05-35

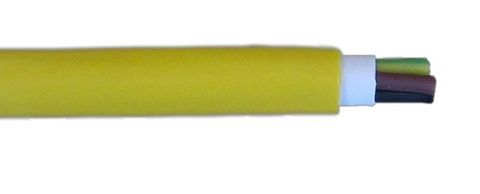

Tinned Shorepower AC Cable - Survey Approved
5C-35mm, 230VAC, YLW, Per Meter
Make an Enquiry
HD05-35T
Tinned Shorepower AC Cable - Survey Approved
5C-35mm, 230VAC, YLW, Per Meter
Make an Enquiry
  HD03-1.5T HD03-2.5T HD03-6.0T HD05-35T
Size: 3 x 1.5mm2 3 x 2.5mm2 3 x 6.0mm2 5 x 35mm2
Approx Stranding: 48/0.20 80/0.20 190/0.20 1120/0.20
Approx O.D. mm: 10.5 12.4 15.9 36.6
Approx Weight kg/km: 140 194 406 3210
Nominal Amps un-enclosed protected from sun @30oC fixed application touching: 21 29 47 149
3 Phase Volt Drop @50Hz/MAX Conductor Temp 90oC (Mv/AM): 30.00 16.40 6.800 1.170
