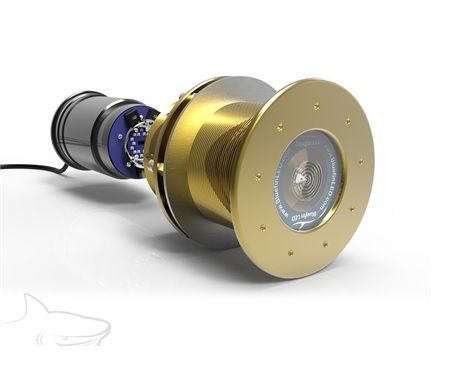

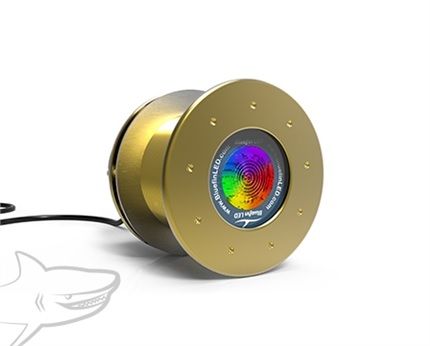

Bluefin Underwater Light Great White
The Bluefin Great White underwater thru hull interchangeable LED boat light produces 13200 fixture Lumens (GW48) and 15000 fixture Lumens (GW20) and has almost unlimited mounting options thanks to an ultralow profile bezel (4mm) and internal driver system.

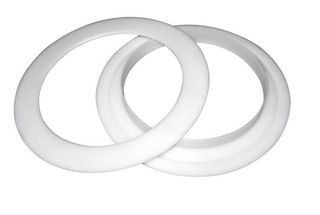

Thru Hull mounting offers secure fixing with the additional benefit of a removable LED cartridge to eliminate the need for hauling. Suitable for transom and side mounting on all hull types. Simple installation thanks to our inbuilt driver technology, just two wires to connect. Reverse polarity protection with active thermal control, Guard X protective coating prevents marine growth. Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls.
RINA Type Approved. Suitable for boats up to 30m, 105ft+.
Mounting Type: Thru-Hull Interchangable
Hole cut out size: 101mm
Maximum Lamp Lumens:
- GW20: 16,000
- GW48: 36,000
Fixture Lumens:
- GW20: 14,500
- GW48: 12,000
Max Wattage:
- GW20: 122 Watts
- GW48: 155 Watts
Typical Life Expectancy: 50,000 hours
Voltage: 24v
Power Draw:
- GW20: 5.1 Amps
- GW48: 6.5 Amps
Protection: Over / Under Voltage, Over Current, Reverse Polarity protection, Thermal protection. MLST Sealing technology
Fixture Profile: 4mm
Fixture Diameter: 140mm
Fixture Length: 170mm
Lens Type: Optical grade 8mm Borosilicate glass with Guard X coating
Fixture Material: AB2 Bronze with aluminium light engine cartridge
Beam Angle: 65 Degree
Warranty: 2 year
Type Approval: RINA IEC 60529
Available Colours:
- GW20: Diamond White 6500k, Emerald Green & Cobalt Blue
- GW48: RGBW Colour change
Features: (GW48) Endless colours, cycling, strobe, dimmer or sound to light
Suitable Use: Below the water-line only
Spacing: 1.2 - 2mtr
Driver Type:
- GW20: Integral
- GW48: External IP67 Plug and play remote box with DMX/WIFI control. Must purchase the WIFI/DMX Controller for functions
Total weight: 5.2kg
Attatched cable length:
- GW20: 1.8mtr Over-moulded
- GW48: 1.8mtr Plug & play
GW20 Included in the box:
- In-line fuse holder & rated fuse
- Gel connector
- Inline Crimps
- Heat shrink
- Fixing Screws
- Template
- Installation instructions
GW48 Included in the box:
- WIFI /DMX Driver box IP67
- In-line fuse holder & rated fuse
- Inline Crimps
- Heat shrink
- Template
- Installation instructions
