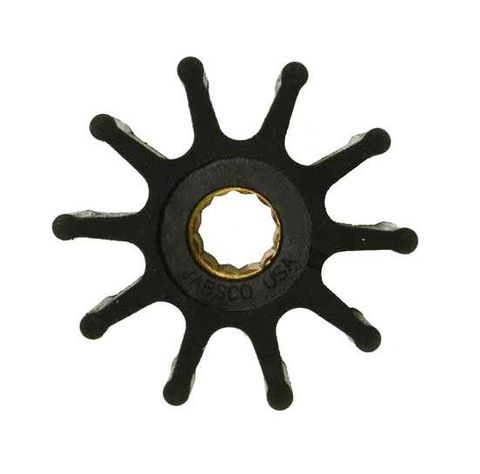

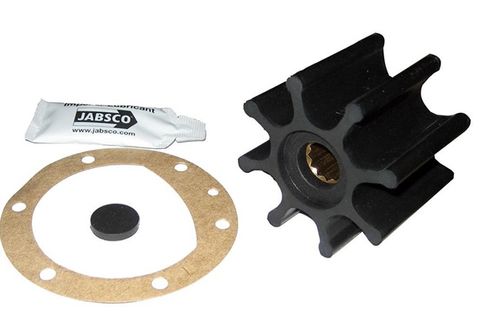

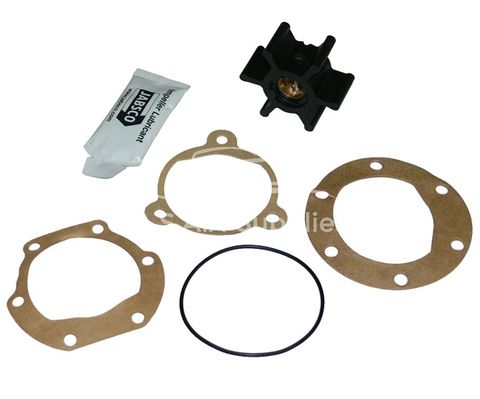

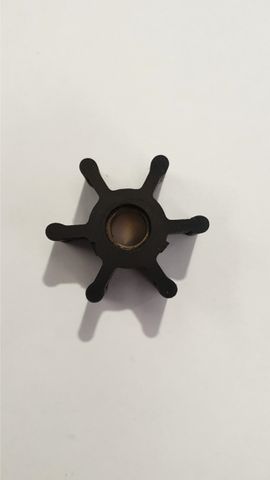

Jabsco Impeller - Neoprene

Jabsco Impeller - Neoprene

Jabsco replacement neoprene flexible impeller.  reliable, efficient and long lasting performance. Use neoprene impellers for engine cooling and for fresh or salt water transfer duties.

Code Image Product Details Enquire
09000K
SHERWOOD 09000K IMPELLER
12 Blade, Drive 3, Shaft 16mm, 65mm Dia, 31.5mm Deep
653-0001-P
JABSCO IMPELLER 020 SP NE PIN
6 Blade, Drive 1, Shaft 12mm, 51mm Dia, 22mm Deep
4528-0001-P
JABSCO  IMPELLER 010 SP NEO PIN
6 Blade, Drive 1&2, Shaft 9.5mm, 40mm Dia, 19mm Deep
22405-0001-P
JABSCO IMPELLER 19X40X12 SLOT SHAFT
6 Blade, Drive 1, Shaft 12mm, 40mm Dia, 19mm Deep
22799-0001-P
JABSCO IMPELLERYANMAR 2QM20 3QM30
6 Blade, Drive 3, Shaft 12.7mm, 51mm Dia, 22mm Deep

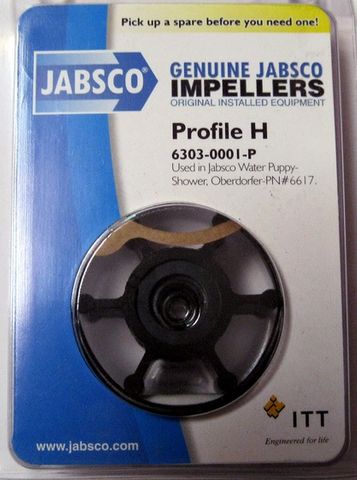

6303-0001-P
JABSCO IMPELLER- WATER PUPPY
6 Blade, Drive 4, Shaft 8mm, 51mm Dia, 22mm Deep
7273-0001-P
JABSCO IMPELLER 020 SP NEO 1FL
6 Blade, Drive 4, Shaft 8mm, 51mm Dia, 22mm Deep
21414-0001-P
JABSCO YANMAR 1GM10 IMPELLER
6 Blade, Drive 4, Shaft 8mm, 32mm Dia, 12mm Deep
17486-0001
JABSCO IMPELLER 20 NEOPRENE
6 Blade, Drive 6, Shaft 12.7mm, 51mm Dia, 22mm Deep
4598-0001-P
JABSCO IMPELLER 080 HALF KEY WAY
8 Blade, Drive 3, Shaft 16mm, 65mm Dia, 51mm Deep
17018-0001-P
JABSCO IMPELLER MERC 47-816814T-VOLVO D6
8 Blade, Drive 7, Shaft 16mm, 65mm Dia, 76.2mm Deep

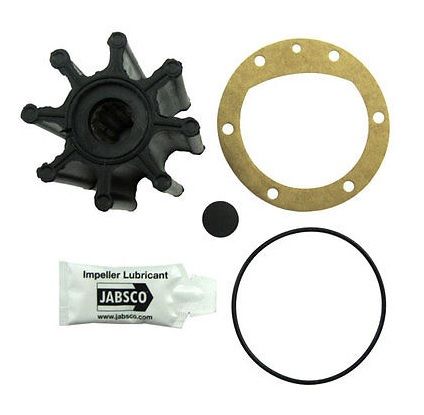

920-0001-P
JABSCO 080 IMPELLER KIT SP NEO 8 BLADE
8 Blade, Drive 7, Shaft 16mm, 65mm Dia, 51mm Deep
11979-0001-P
JABSCO IMPELLER 080 8 BL SPL 65X 36.5MM
8 Blade, Drive 7, Shaft 16mm, 65mm Dia, 36.5mm Deep
18786-0001-W
JABSCO  IMPELLER 370 DBLE FLAT NEOPRENE
9 Blade, Drive 5, Shaft 25.4mm, 118mm Dia, 88.9mm Deep
836-0001-P
JABSCO IMPELLER 200 NEOPRENE
9 Blade, Drive 7, Shaft 25.4mm, 95mm Dia, 63mm Deep
6760-0001B
JABSCO IMPELLER 270 NEOPRENE
9 Blade, Drive 7, Shaft 25.4mm, 95mm Dia, 88.9mm Deep
18653-0001-P
JABSCO  IMPELLER 020 SP NEO PIN
10 Blade, Drive 1, Shaft 12mm, 51mm Dia, 22mm Deep
18673-0001-P
JABSCO  IMPELLER 020 SP NEO PIN
10 Blade, Drive 1&2, Shaft 12.5mm, 51mm Dia, 22mm Deep
18327-0001-P
JABSCO 080  IMP SHERWOOD 15000K FULL KEY
10 Blade, Drive 3, Shaft 16mm, 65mm Dia, 51mm Deep
17954-0001-P
JABSCO  IMPELLER 47-59362  MERCRUISER
10 Blade, Drive 4, Shaft 19mm, 65mm Dia, 51mm Deep
9200-0011B
JABSCO  IMPELLER-010 MP NE 1FL
10 Blade, Drive 4, Shaft 8mm, 40mm Dia, 19mm Deep
8980-0021
JABSCOIMPELLER 040 HP NEO 2FL
10 Blade, Drive 5, Shaft 15.8mm, 57.1mm Dia, 37.7mm Deep
17956-0001-P
JABSCO IMPELLER DING DRIVE NEOPRENE
10 Blade, Drive 6, Shaft 16mm, 65mm Dia, 51mm Deep
17937-0001-P
JABSCO IMPELLER (EQ TO 920) 080 NEO
10 Blade, Drive 7, Shaft 16mm, 65mm Dia, 51mm Deep

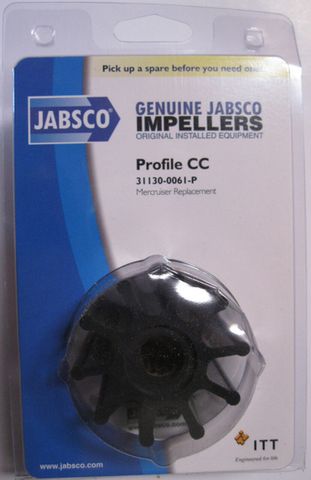

31130-0061-P
JABSCO IMPELLER 100SPL NEO
10 Blade, Drive 7, Shaft 8mm, 66mm Dia, 68mm Deep
18777-0001-P
JABSCO  IMPELLER (22120-0001)
10 Blade, Drive 7, Shaft 16mm, 57mm Dia, 51mm Deep

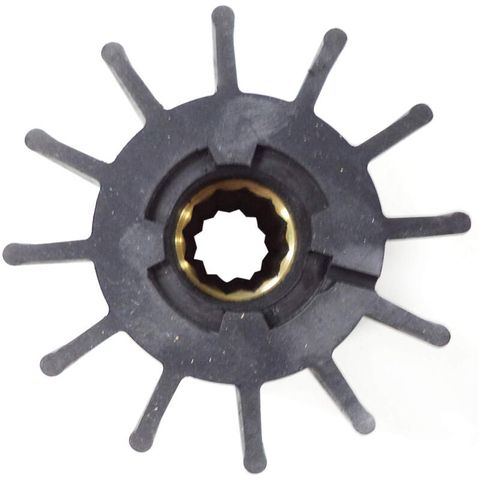

31500-0061-W
JABSCO  IMPELLER 500  GROUP NEOPRENE
Spline, 12 Blade, Model 500R
18838-0001-P
JABSCO IMPELLER--9959 SHERWOOD
12 Blade, Drive 3, Shaft 16mm, 65mm Dia, 31.5mm Deep
18948-0001-P
JABSCO  IMPELLER-10615 SHERWOOD
12 Blade, Drive 3, Shaft 16mm, 65mm Dia, 41mm Deep
18958-0001-P
JABSCO IMPELLER EQUIV TO SHERWOOD 17000K
12 Blade, Drive 3, Shaft 25.4mm, 95mm Dia, 74mm Deep
4568-0001-P
JABSCO IMPELLER 040 SP NEO KEY
12 Blade, Drive 3, Shaft 16mm, 57mm Dia, 31.5mm Deep
1210-0001-P
JABSCO  IMPELLER 040 NEOPRENE
12 Blade, Drive 7, Shaft 16mm, 57mm Dia, 31.5mm Deep
17938-0001-P
JABSCO  IMPELLER 300  GROUP NEOPRENE
12 Blade, 3 3/4 x 3-3/4 x 1, Brass Insert
13554-0001-P
JABSCO   IMPELLER-YAMAHA DIESELS
12 Blade, Drive 7, Shaft 16mm, 57mm Dia, 48.4mm Deep
17935-0001-P
JABSCO IMPELLER 200 GROUP NEOPRENE
12 Blade, Drive 7, Shaft 25.4mm, 95mm Dia, 63mm Deep
17936-0001-P
JABSCO  IMPELLER 270 GROUP NEOPRENE
12 Blade, Drive 7, Shaft 25.4mm, 95mm Dia, 88.9mm Deep
17370-0001-P
JABSCO IMPELLER 270 SP NEF 2FL
12 Blade, Drive 5, Shaft 25.4mm, 95mm Dia, 88.9mm Deep
5929-0001
JABSCO IMPELLER 040 SP NEO DING
12 Blade, Drive 6, Shaft 12.7mm, 57mm Dia, 31.5mm Deep
22429-0001
JABSCO IMPELLER
6 Blade, Drive 1 & 2, Shaft 9.5mm, 39.6mm dia, 19mm deep

To correctly identify your replacement impeller part number:

  1. If you know the full Jabsco pump model number go to the Manuals & Resources tab, click on the "Flexible Impeller Pump Spares Manual" link. Go to Pump Spares by Pump Model section and find the correct impeller part number.
  2. If you have an alternative brand of pump and you know the impeller part number go to the Manuals & Resources tab, click on the "Flexible Impeller Pump Spares Manual" link. Go to Upgrade to a Jabsco Impeller section and check for the Jabsco replacement impeller part number.
  3. If you have the impeller in front of you identify the impeller profile Code Letter by going to the Manuals & Resources tab, click on the "Flexible Impeller Replacement Guide" link, go to Selection Table by Profile section. Measure the Depth (see Diagram tab). Identify the Drive. Measure the Shaft Diameter. Select the material. Read off the part number.
  4. If you do not have the impeller in front of you, but you can ask someone who does - go to the Manuals & Resources tab, click on the "Flexible Impeller Replacement Guide" link. Check how many blades there are? What is the outside diameter?  What type of Drive is it?  What is the depth?  What is the shaft diameter?  Which material do you need? Read off the part number.



Measuring your impeller:
