Scanstrut Self Levelling Mast Mounts for Radomes

Scanstrut Self Levelling Mast Mounts for Radomes

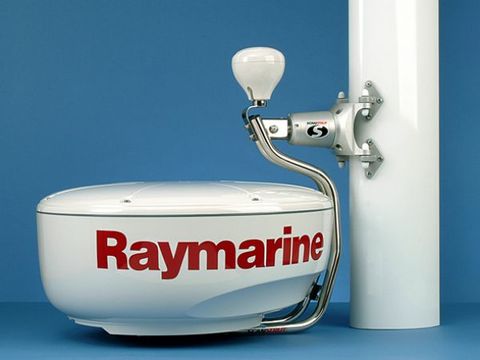

The Scanstrut self-levelling radar mount range ensures your radar always stays level with the horizon for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture. Our mast mounted version raises the antenna clear of the deck and any obstructions for increased radar horizon.

The main levelling unit features a fine turned hydraulic damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance free and no power is required. The complete system weighs only 3.4kg and attaches to the mast with 4 swivel feet matching a variety of mast sections with 12-point fixing ensures a secure fixture.

Code Image Product Details Enquire
LMM-1
Scanstrut Self Levelling Mast Mounts for Radomes
Self-Levelling Mast Mount
LMM-2
Scanstrut Self Levelling Mast Mounts for Radomes
Self-Levelling Mast Mount (Base 2)
