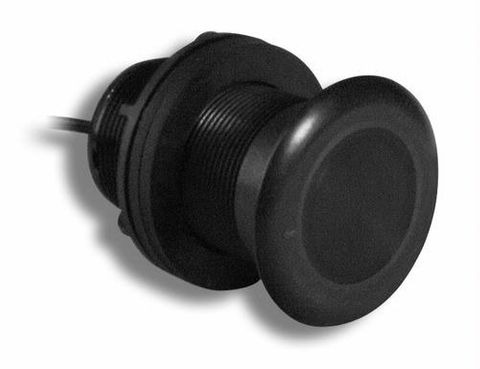

Raymarine P19 Plastic Thru-Hull Transducer
The P19 is a tilted element thru-hull transducer with a shorter stem for installation on hulls with low head space.

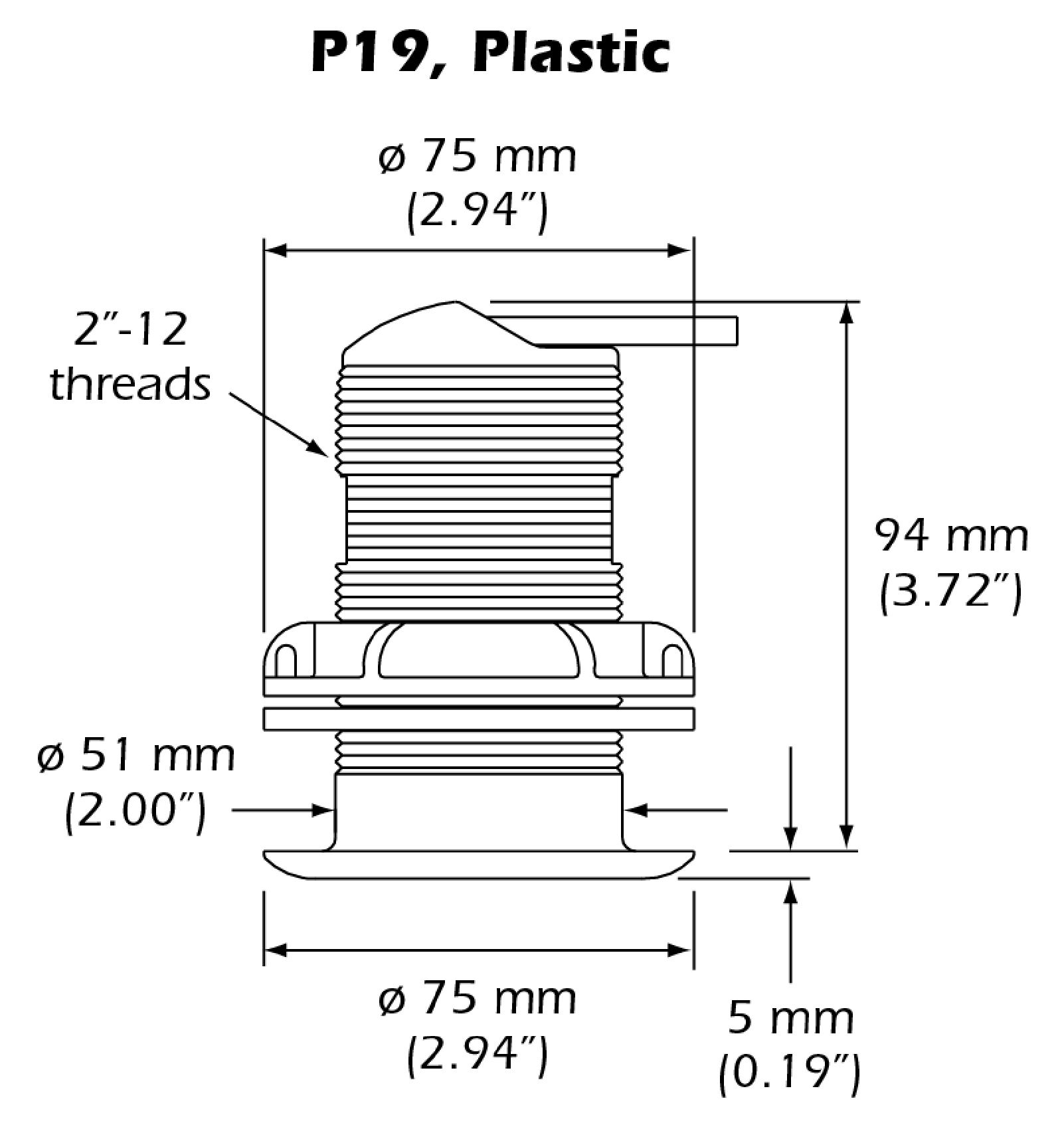

Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer. All versions have a nearly flush housing which minimizes drag with only 5 mm (3/16") extending outside of the hull.
The P19 is available in three different tilted element models:
- Fixed 20° tilted versions for 16° to 24° hull deadrise
- Fixed 12° tilted versions for 8° to 15° hull deadrise
- Fixed 0° tilted versions for 0° to 7° hull deadrise
Features
- Depth only or depth and temperature
- 250 W
- 200 kHz with a 14° beamwidth
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Plastic or bronze housings available
- Recommended boat size: Up to 9 m (30')
Style: Thru-Hull
Deadrise angle: Up to 24°
Cable Length: 30' (9m)
Boat size: Up to 9 m (30')
Monitors: Depth only or Depth and temperature
Material: Plastic, Urethane acoustic window
Compatible Hull Material: Fiberglass or metal
Transmit Power: 375W
Frequency: 50/200kHz
Depth: 200kHz: 700'
Beam width: 200kHz: 11°
NOTE: Plastic & Bronze housing is available
Related Products
-
-
-
Tridata: Combined depth and speed data with trip/log, sea temp and SOG.E70060
-

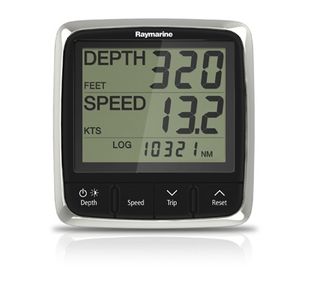

Bi-data: Speed, depth, log and sea temperature, multiple alarmsE70066
