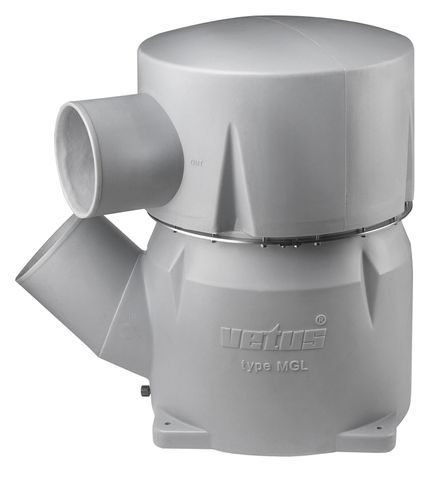

Vetus Waterlock MGL Range 152-250mm Hose

Vetus Waterlock MGL Range 152-250mm Hose

HTML Editor - Full Version

This type of waterlock is designed for modern high performance boats with one or two large engines which have little space to spare in the engine room. The outlet connection at the top can rotate through 360º and the inlet connection is at an angle of 45º upward. Type MG can only be installed in water injected exhaust systems. Its body is entirely made of synthetic materials, therefore not susceptible to corrosion or galvanic action.

Specifications

  • Excellent sound reduction
  • Minimal back pressure
  • Drain valve for winter storage
  • Comes with stainless steel (AISI 316) clamp bands

Code Image Product Details Enquire
MGL6458A
Vetus Waterlock MGL Range 152-250mm Hose
152mm In / 203mm Out
MGL8458A
Vetus Waterlock MGL Range 152-250mm Hose
203mm In / 203mm Out
MGL84510A
Vetus Waterlock MGL Range 152-250mm Hose
203mm in / 250mm Out

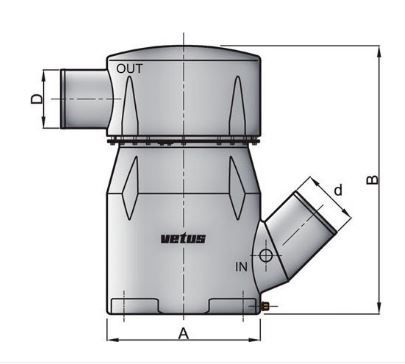

  MGL6458A MGL84510A
Capacity (LPM): 130 130
Diameter d (mm): 152 203
Diameter A (mm): 500 500
Diameter D (mm): 203 254
Length B (mm): 750 750
