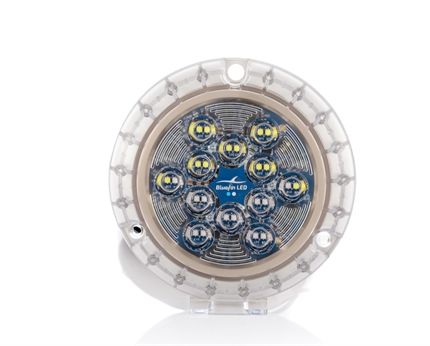

Bluefin Underwater Light Piranha P24
Bluefin Piranha P24 surface mounted LED underwater boat light produces 11,000 fixture Lumens.
The Piranha P24 is available as single colour, dual colour fixture white/blue or the RGBW colour change. The P24 Lights are controlled via a simple on/off toggle switch, off then on to select colour or strobe (flashing) mode, or the Bluefin IYS Control system.
Ultra-compact low profile design is perfect for all types of boats, suitable for transom and side mounting on all hull types. Incredibly simple to install just one small cable entry hole and 3 mounting screws. Reverse polarity protection within built driver technology and active thermal rollback.
Mounting Type: Surface
Hole cut out size: 18mm
Maximum Lamp Lumens:
- P24: 16,000
- P24 CC: 9,000
Fixture Lumens:
- P24: 10,600
- P24 CC: 7,000
Max Wattage: 120 watts
Typical Life Expectancy: 50,000 hours
Voltage: 12v/24v Multi-voltage
Power Draw: 10 amps @ 12v / 5 amps @ 24v
Protection: Over / Under Voltage, Over Current, Reverse Polarity protection, Active Thermal protection. Hydro block technology.
Fixture Profile: 18.5mm
Fixture Diameter: 130mm
Lens Type: 3mm Optical grade high impact polymer, Guard X Coating
Fixture Material: AB2 Bronze
Beam Angle: 60 Degree FWHM
Warranty: 2 year
Type Approval: RINA IEC 60529
Available Colours:
- P24: Diamond White 6500k, Emerald Green, Cobalt Blue, Sapphire Blue, Dual Colour White/Blue
- P24 CC: Full RGBW Colur change, Toggle switch operation, colour scroll on startup, PTT Technology ensures continuous synchronisation of all the lights.
Suitable Use: Above & Below the water-line
Spacing: 1.2 - 2.2mtr
Driver Type: Integral
Total weight: 550gm
Attatched cable length: 1.8 mtr Over-moulded
Piranha P24 Included in the box:
- In-line fuse holder & rated fuse
- Gel connector
- Inline Crimps
- Heat shrink
- Fixing Screws
- Template
- Installation instructions
Related Products
-
-

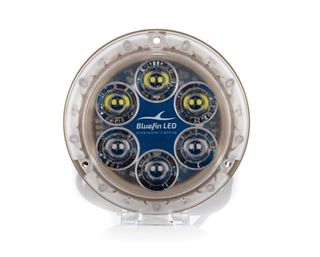

Cobalt blue, 12/24v, Surface Mount, Aluminium BaseP12A-SM-B134
-
