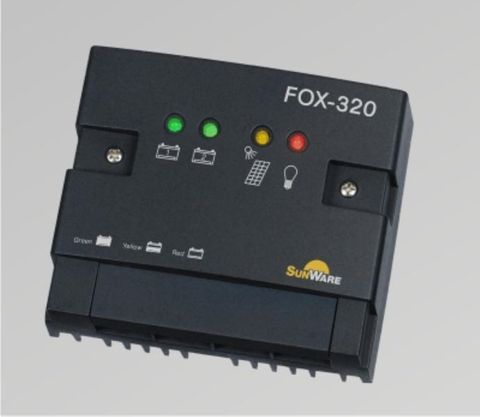

Sunware Solar Regulator X20 Series

HTML Editor - Full Version

The FOX-320 / FOX-220 solar charge regulators are for charging currents up to 20A, suitable for AGM, GEL and lead-acid batteries. With the FOX-220 one battery system can be charged and with the FOX-320 two different battery systems can be charged. The optimized charging characteristic, in combination with the hardware PWM control, results in a considerably faster and more gentle charging of the battery. Hazardous gassing and/or overcharging are safely prevented.

The deep discharge protection is designed for consumers up to a maximum current consumption of 20A. The controller automatically detects the system voltage. The active back-current blocking device ensures reverse current protection and allows an extremely low voltage drop between the module and the battery.

12/24VDC automatic recognition.

Overcharge protection 20A is equal to solar modules of 340 Watt 12V (680W @ 24V)
Discharge protection or night light function adjustable (max. 20A), shut-off threshold adjustable via FOX-MD1
FOX-320 for 2 battery banks
System voltage 12V or 24V (automatically)
Battery type can be individually set for AGM, GEL and Lead-acid batteries
Loads are supplied always of battery 1
Charge ratio from B1 to B2 adjustable
Extendable with remote display FOX-MD1
