Vetus RimDrive Thruster 125KFG

Vetus RimDrive Thruster 125KFG

The RIMDRIVE is unique in its design - when operating this thruster is virtually silent. The propeller forms the rotating part of the electric motor (rotor) and the fixed winding (stator) is mounted in the tunnel.  Therefore noisy gears are not used in this design. Secondly a ring mounted around the propeller prevents the propeller from cavitating.

The RIMDRIVE needs a thruster supply voltage of 48VDC. Charging can either be delivered by a charger 110/230VAC to 48VDC charger or by converting the normal 12 or 24V battery supply voltage by means of a DC to DC converter solution. The panel (BPJP) and interface (RDIF) need to be ordered separately.

Code Image Product Details Enquire
RD125
Vetus RimDrive Thruster 125KFG

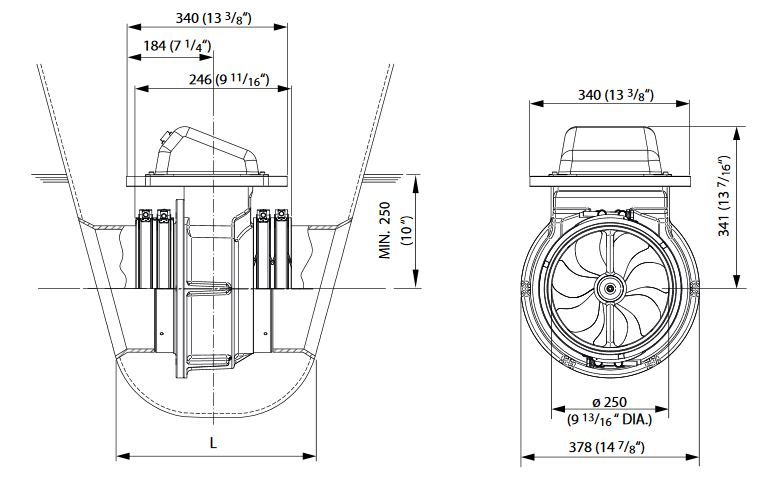

250mm Tunnel Diameter – 48V – 125KG
Make an Enquiry

Proportional: Yes

Thrust: 125N/KGF

Power: 6.7KW

Internal Tunnel Diameter: 250MM

Weight: 37KG

Voltage: 48V

Current Consumption: 150A

Continuous Operating Time: No

Ignition Protected: No

Retractable: No

Extended Runtime: No
