Jabsco Impeller - Nitrile

Jabsco Impeller - Nitrile

Jabsco Nitrile flexible impellers offer reliable, efficient and long lasting performance.

To correctly identify the Jabsco impeller you need click on the Technical Data tab below.

Code Image Product Details Enquire

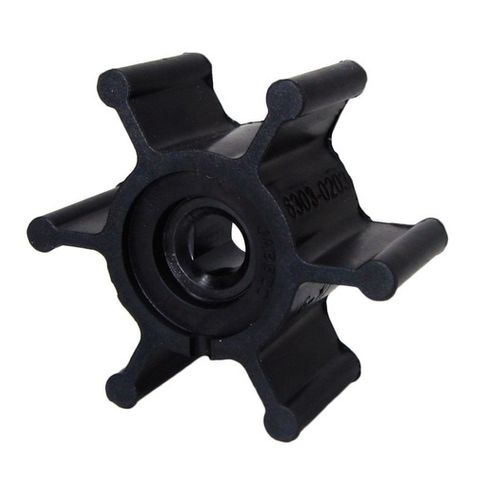

6303-0003-P
Jabsco Impeller - Nitrile
6 Blade, Drive 4, Shaft 8mm, 51mm Dia, 22mm Deep
Make an Enquiry
7273-0003-P
Jabsco Impeller - Nitrile
6 Blade, Drive 4, Shaft 8mm, 51mm Dia, 22mm Deep
Make an Enquiry
920-0003-P
Jabsco Impeller - Nitrile
8 Blade, Drive 7, Shaft 16mm, 65mm Dia, 51mm Deep
Make an Enquiry
836-0003-P
Jabsco Impeller - Nitrile
9 Blade, Drive 7, Shaft 25.4mm, 95mm Dia, 63mm Deep
Make an Enquiry
6760-0003
Jabsco Impeller - Nitrile
9 Blade, Drive 7, Shaft 25.4mm, 95mm Dia, 88.9mm Deep
Make an Enquiry

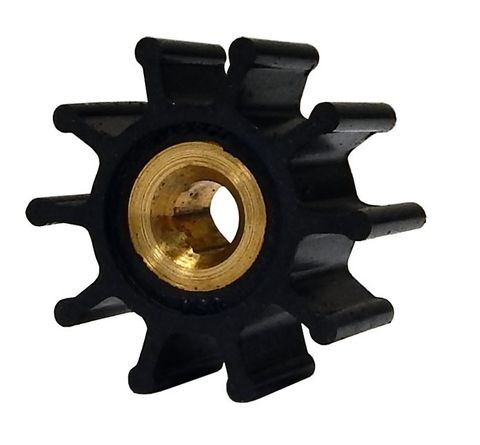

9200-0023-P
Jabsco Impeller - Nitrile
10 Blade, Drive 4, Shaft 8mm, 40mm Dia, 19mm Deep
Make an Enquiry
17956-0003
Jabsco Impeller - Nitrile
10 Blade, Drive 6, Shaft 16mm, 65mm Dia, 51mm Deep
Make an Enquiry

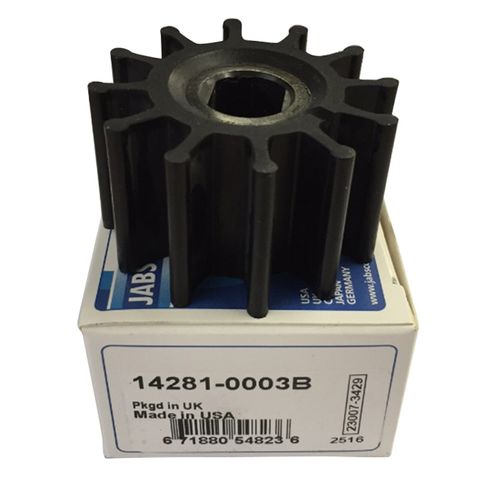

14281-0003
Jabsco Impeller - Nitrile
12 Blade, Drive 5, Shaft 16mm, 57mm Dia, 31.5mm Deep
Make an Enquiry
5929-0003
Jabsco Impeller - Nitrile
12 Blade, Drive 6, Shaft 12.7mm, 57mm Dia, 31.5mm Deep
Make an Enquiry

To correctly identify your replacement impeller part number:

  1. If you know the full Jabsco pump model number go to the Manuals & Resources tab, click on the "Flexible Impeller Pump Spares Manual" link. Go to Pump Spares by Pump Model section and find the correct impeller part number.
  2. If you have an alternative brand of pump and you know the impeller part number go to the Manuals & Resources tab, click on the "Flexible Impeller Pump Spares Manual" link. Go to Upgrade to a Jabsco Impeller section and check for the Jabsco replacement impeller part number.

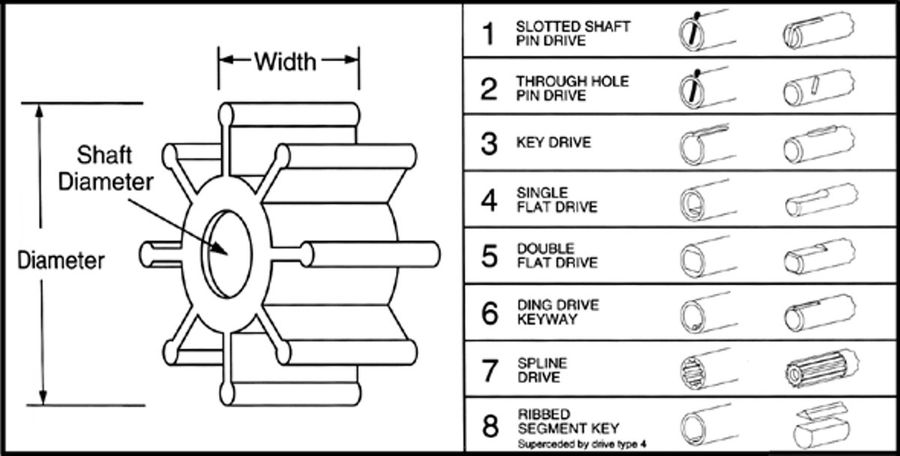

  3. If you have the impeller in front of you identify the impeller profile Code Letter by going to the Manuals & Resources tab, click on the "Flexible Impeller Replacement Guide" link, go to Selection Table by Profile section. Measure the Depth (see Diagram tab). Identify the Drive. Measure the Shaft Diameter. Select the material. Read off the part number.
  4. If you do not have the impeller in front of you, but you can ask someone who does - go to the Manuals & Resources tab, click on the "Flexible Impeller Replacement Guide" link. Check how many blades there are? What is the outside diameter?  What type of Drive is it?  What is the depth?  What is the shaft diameter?  Which material do you need? Read off the part number.

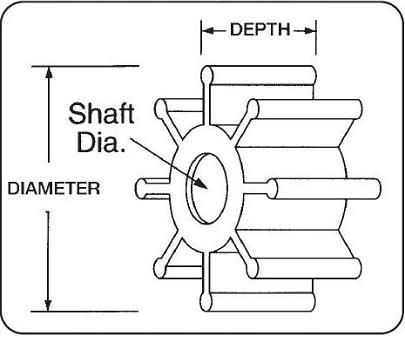

Measuring your impeller:
