Jabsco Impeller - Neoprene - Sanitary

Jabsco Neoprene Sanitary impellers are suitable for fresh or salt water and offer reliable, efficient and long lasting performance.

To correctly identify the Jabsco impeller you need click on the Technical Data tab below.

Code	Product Details	Enquire
7614-0005	12 Blade, Drive 5, Shaft 25.4mm, 117.5mm Dia, 88.9mm Deep	Make an Enquiry
8600-0005	12 Blade, DBL Flat, Shaft 16mm, 57mm Dia, 32mm Deep	Make an Enquiry
8840-0005B	8 Blade, Drive 5, Shaft 15.9mm, 65.1mm Dia, 50.8mm Deep	Make an Enquiry

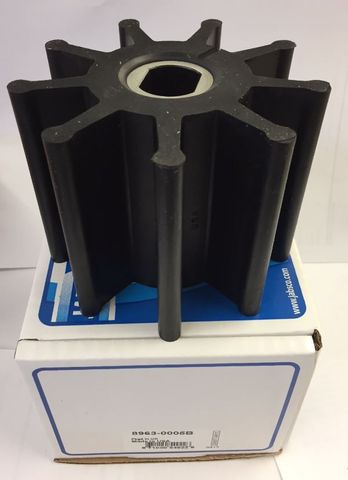

8963-0005B	9 Blade, Drive 5, Shaft 24.4mm, 117.5mm Dia, 88.6mm Deep	Make an Enquiry
8980-0005	10 Blade, Drive 5, Shaft 15.8mm, 57.1mm Dia, 37.7mm Deep	Make an Enquiry
8981-0005B	8 Blade, Drive 5, Shaft 15.9mm, 65.1mm Dia, 50.8mm Deep	Make an Enquiry
8983-0005	10 Blade, Drive 5, Shaft 25.4mm, 95.2mm Dia, 63.5mm Deep	Make an Enquiry
8984-0005B	9 Blade, Drive 5, Shaft 24.4mm, 117.5mm Dia, 88.6mm Deep	Make an Enquiry
14346-0005B	200, Neoprene Food Grade, 2 Flat Plastic Drive Insert, Medium Pressure	Make an Enquiry
21899-0005B	500, Neoprene Food Grade, 2 Flat Plastic Drive Insert, High Pressure	Make an Enquiry

Flexible Impellar Pump Spares Manual (extracted from Jabsco-Rule Marin Product Catelogue)

To correctly identify your replacement impeller part number:

If you know the full Jabsco pump model number go to the Manuals & Resources tab, click on the "Flexible Impeller Pump Spares Manual" link. Go to Pump Spares by Pump Model section and find the correct impeller part number.
If you have an alternative brand of pump and you know the impeller part number go to the Manuals & Resources tab, click on the "Flexible Impeller Pump Spares Manual" link. Go to Upgrade to a Jabsco Impeller section and check for the Jabsco replacement impeller part number.
If you have the impeller in front of you identify the impeller profile Code Letter by going to the Manuals & Resources tab, click on the "Flexible Impeller Replacement Guide" link, go to Selection Table by Profile section. Measure the Depth (see Diagram tab). Identify the Drive. Measure the Shaft Diameter. Select the material. Read off the part number.
If you do not have the impeller in front of you, but you can ask someone who does - go to the Manuals & Resources tab, click on the "Flexible Impeller Replacement Guide" link. Check how many blades there are? What is the outside diameter? What type of Drive is it? What is the depth? What is the shaft diameter? Which material do you need? Read off the part number.

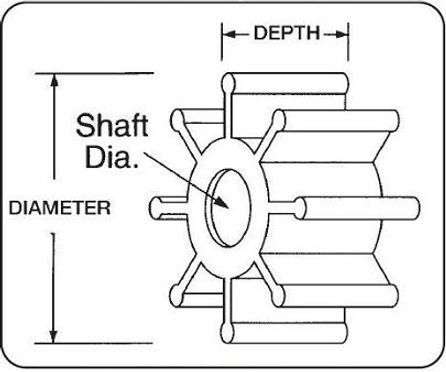

Measuring your Impellar
