The Smart Battery Shunt

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

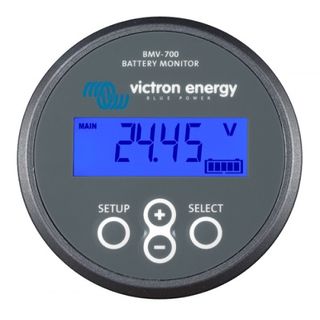

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Models:
500A, 1000A, 2000A



Code Image Product Details Enquire
SHU050150050
Victron Smart Shunt Battery Monitor

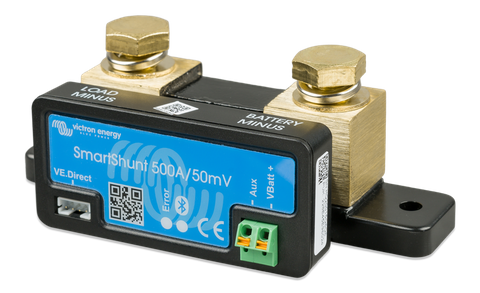

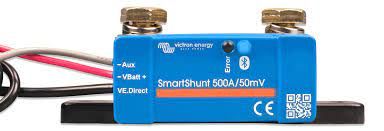

Smart Shunt 500A
Make an Enquiry
SHU050210050
Victron Smart Shunt Battery Monitor

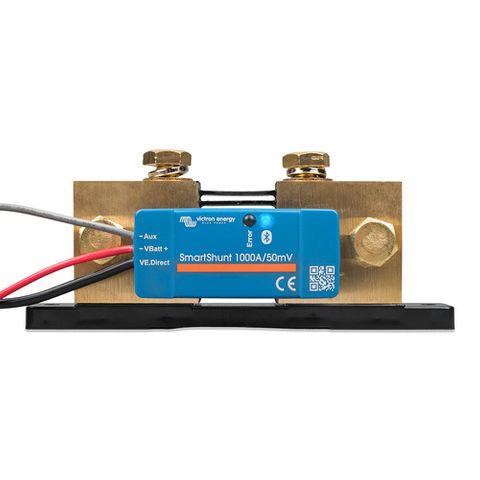

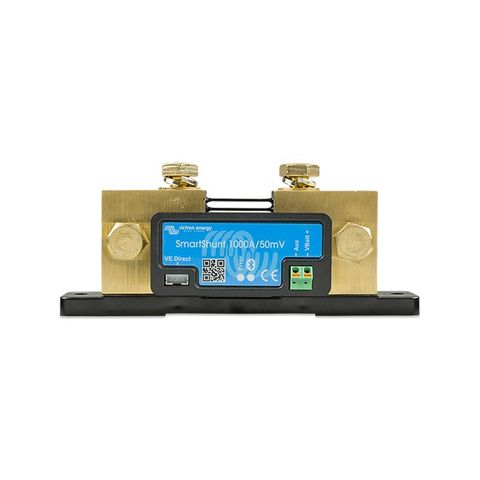

Smart Shunt 1000A
Make an Enquiry
SHU050220050
Victron Smart Shunt Battery Monitor

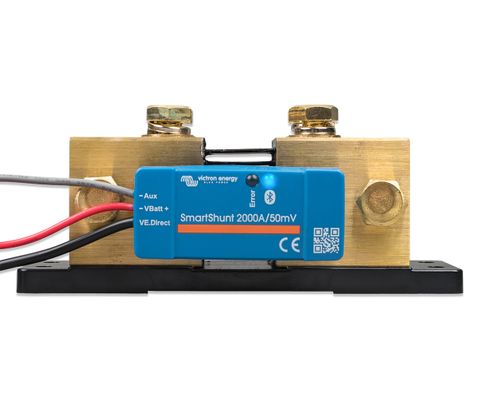

Smart Shunt 2000A
Make an Enquiry
SHU065150050
Victron Smart Shunt Battery Monitor
SmartShunt 500A/50mV IP65
Make an Enquiry
SHU065210050
Victron Smart Shunt Battery Monitor
SmartShunt 1000A/50mV IP65
Make an Enquiry
SHU065220050
Victron Smart Shunt Battery Monitor
SmartShunt 2000A/50mV IP65
Make an Enquiry
