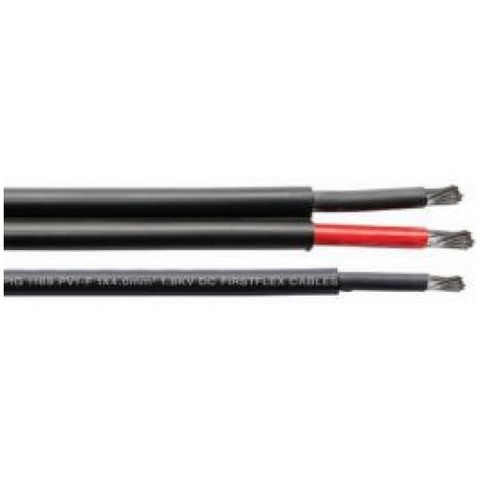

Twin Core Solar Cable 4mm

Twin Core Solar Cable 4mm

Designed to withstand the harsh environments of solar panel installations.  Suitable for cabling between interconnected solar modules or DC/AC inverter.  Sold per meter or 100m roll.  Black outer sheath.

Voltage rating:

0.6/1kV      AC Voltage / 0.9/1.8kV   DC Voltage

Construction:

Conductor:           Annealed Tinned Copper Strands, Class 5 & 6
Insulation:            XLR 120°C Compound (PV1-F)
Outer Sheath:       XLR Compound

Colour:                Red and Black Cores

Standards:   AS/NZS 5033:2014, IEC 60332-1, IEC 60228, IEC 60754-1, IEC 61034

Code Image Product Details Enquire
SOLAR2-4.0MM-1M
Twin Core Solar Cable 4mm
2C-4mm, Black, Per Meter
SOLAR2-4.0MM-100M
Twin Core Solar Cable 4mm
2C-4mm, Black, 100m spool



No. of Cores x Size (mm²): 2 x 4.0
Approx. Stranding (No. of wires x mm): 52/0.30
Approx. Overall Diameter (mm): 4.6 x 9.40
Current carrying capacity at 60°C ambient temperature (free air): 55
Approx. Weight (Kg/Km):  120
