Vetus Bulkhead Mount Waste Tank

Vetus Bulkhead Mount Waste Tank

HTML Editor - Full Version

VETUS bulkhead mounting tank for fitting in confined spaces - or where an underfloor situation is impractical. The tank has a capacity of 25 litres and is made of seamless, odour impermeable polythene. The contents level can be seen from outside. Suitable for both “black” and “grey” water. It comes complete with the following components installed:

  • Suction pipe with Ø 38 mm angled hose connector, for connection to deck plate
  • Angled hose connector, Ø 38 mm, for discharge
  • Inspection cover
  • Angled hose connector, Ø 19 mm, for tank ventilation (breather)

Angled inlet connectors can be ordered separately. One hole has already been provided, to connect the inlet fitting. The tank is suitable for mounting under the side decks, above the waterline. When permitted, the contents of the tank can be gravity discharged at sea, without the assistance of a pump. Simply opening the sea cock will empty the tank. Provided with ISO 8099 identification.

Code Image Product Details Enquire
WW25W
Vetus Bulkhead Mount Waste Tank
25L
Make an Enquiry
WW25WH
Vetus Bulkhead Mount Waste Tank
25L
Make an Enquiry
WW60W
Vetus Bulkhead Mount Waste Tank
60L
Make an Enquiry

CAPACITY (LITRES)

60

DIMENSIONS (LENGTH X WIDTH X HEIGHT) (MM)

665 x 440 x 350

WEIGHT (KG)

No

MATERIAL

Synthetic

RIGID/FLEXIBLE TANK

Rigid

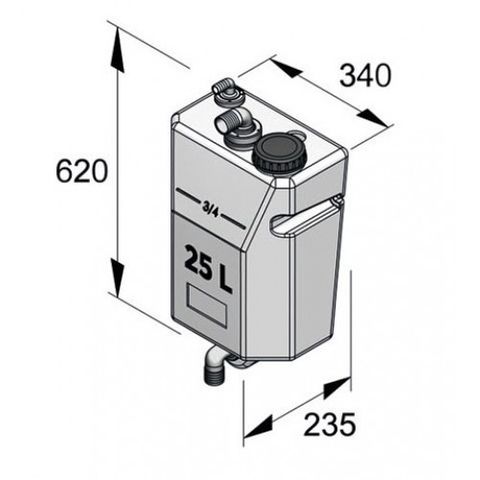

CAPACITY (LITRES)

25

DIMENSIONS (LENGTH X WIDTH X HEIGHT) (MM)

620 x 340 x 235

WEIGHT (KG)

No

MATERIAL

Synthetic

RIGID/FLEXIBLE TANK

Rigid

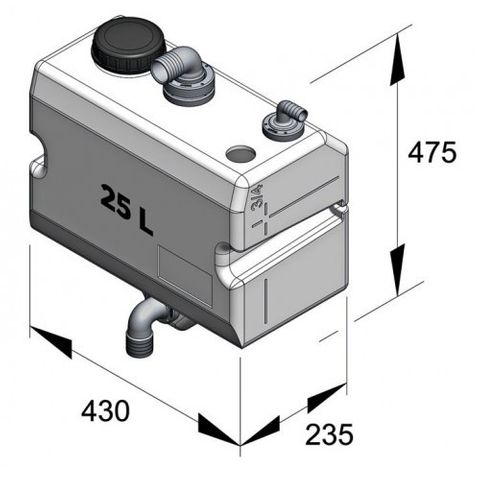

CAPACITY (LITRES)

 25

DIMENSIONS (LENGTH X WIDTH X HEIGHT) (MM)

475 x 430 x 235

WEIGHT (KG)

 No

MATERIAL

 Synthetic

RIGID/FLEXIBLE TANK

 Rigid
