Jabsco Oil Change System

Jabsco Oil Change System

HTML Editor - Full Version

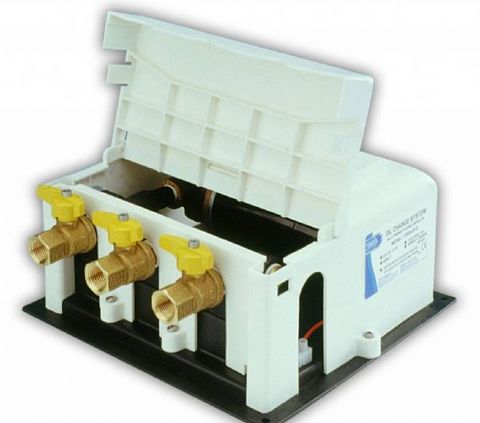

Jabsco Oil Change System. Reversible pump with valved manifold, for permanent connection to oil sumps and pans. Removes old oil, then reverses to pump in new oil.

Tough plastic cover protects pump and valves. Built-in reversing switch.

Connections: 1/2" internal threaded. Output: up to 3 litres/minute.

Code Image Product Details Enquire
17820-0012
Jabsco Oil Change System
12VDC
Make an Enquiry
17820-0024
Jabsco Oil Change System
24VDC
Make an Enquiry

Body: Bronze

Impeller: Nitrile

Seal: Buna Lip Type

Motor: Reversible Permanent Magnet With Integral Reversing Switch; Complies with USCG 183.410 and ISO 8846 Marine

Valves: 1/2" NPT Full Flow Ball Type

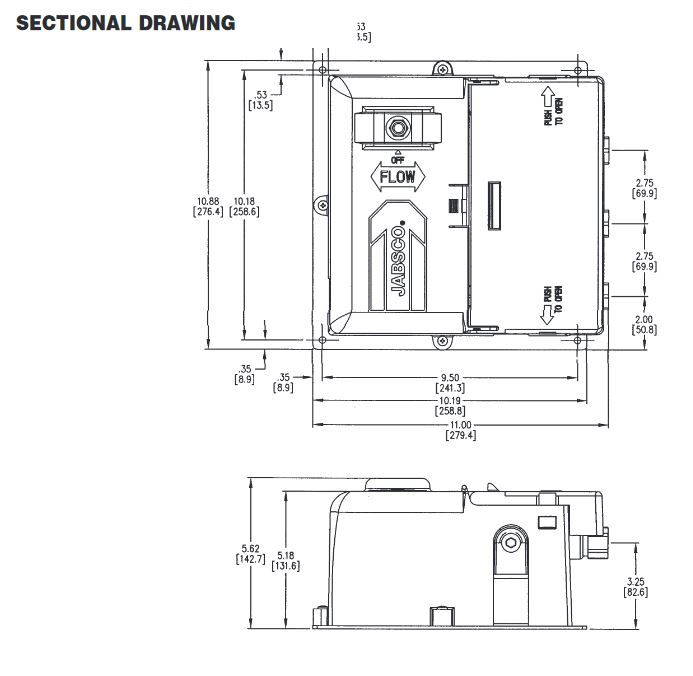

Height: 6-1/4" (15.9 cm) Including the height of the 1-1/8" (30 cm) tall Switch Guards

Length: 10-7/8" (27.6 cm)

Width: 10-3/16" (26.0 cm)

Weight: 9 lbs. (4.1kg)
