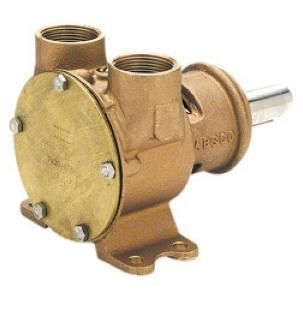

Jabsco 200 Bronze Pedestal Pump

Jabsco 200 Bronze Pedestal Pump

HTML Editor - Full Version

Jabsco self priming Engine Cooling Pump. Bronze body with stainless steel shaft.

1 1/4" NPT internal thread ports in U configuration. Nominal 280LPM at 2450RPM at 3m head.

Code Image Product Details Enquire

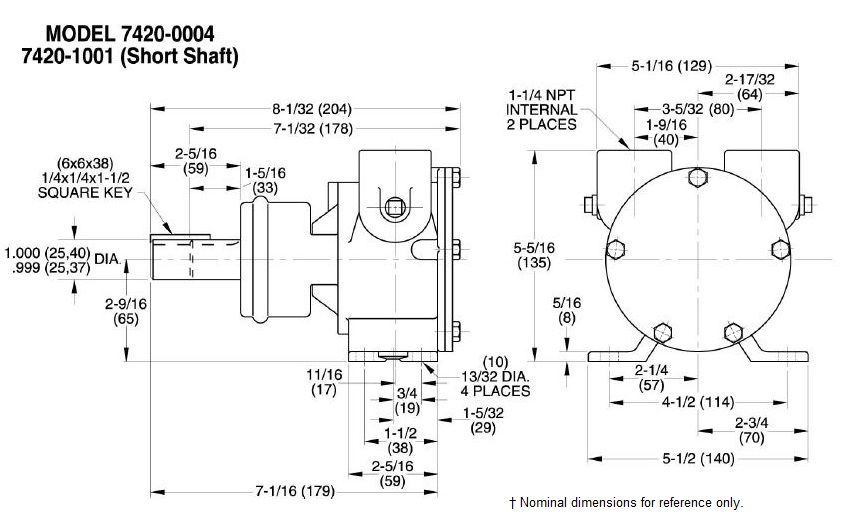

7420-0004
Jabsco 200 Bronze Pedestal Pump
Short Shaft
Make an Enquiry
7420-0101
Jabsco 200 Bronze Pedestal Pump
Long Shaft
Make an Enquiry
7420-1001
Jabsco 200 Bronze Pedestal Pump
Short Ports, Short Shaft
Make an Enquiry

Body: Bronze

Impeller: Neoprene

Shaft: Type 316 Stainless Steel

Wearplate: Replaceable

Shaft Seal: Carbon-Ceramic Face Type

Bearing: Pre-lubricated Double Row Ball

Ports: 1-1/4" (32mm) NPT Internal

Weight: 10-1/2 lb (4.8 kg) Approx.
