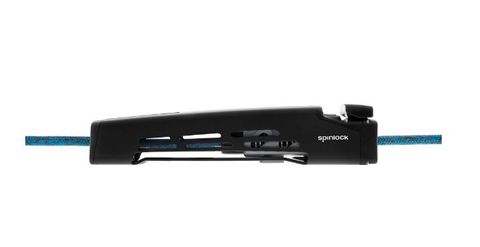

Spinlock XTX Rope Clutch with optimised SOFTGRIP braid technology.

Drawing on experience in both mechanical and textile product design the XTX Soft Grip Clutch uses a combination of new materials to offer mid load rope holding in a lightweight, compact device. Using an innovative braided ‘soft grip’ technology to engage and hold a loaded line, the XTX benefits from being very ‘kind’ to the rope cover with a controlled and easy release.

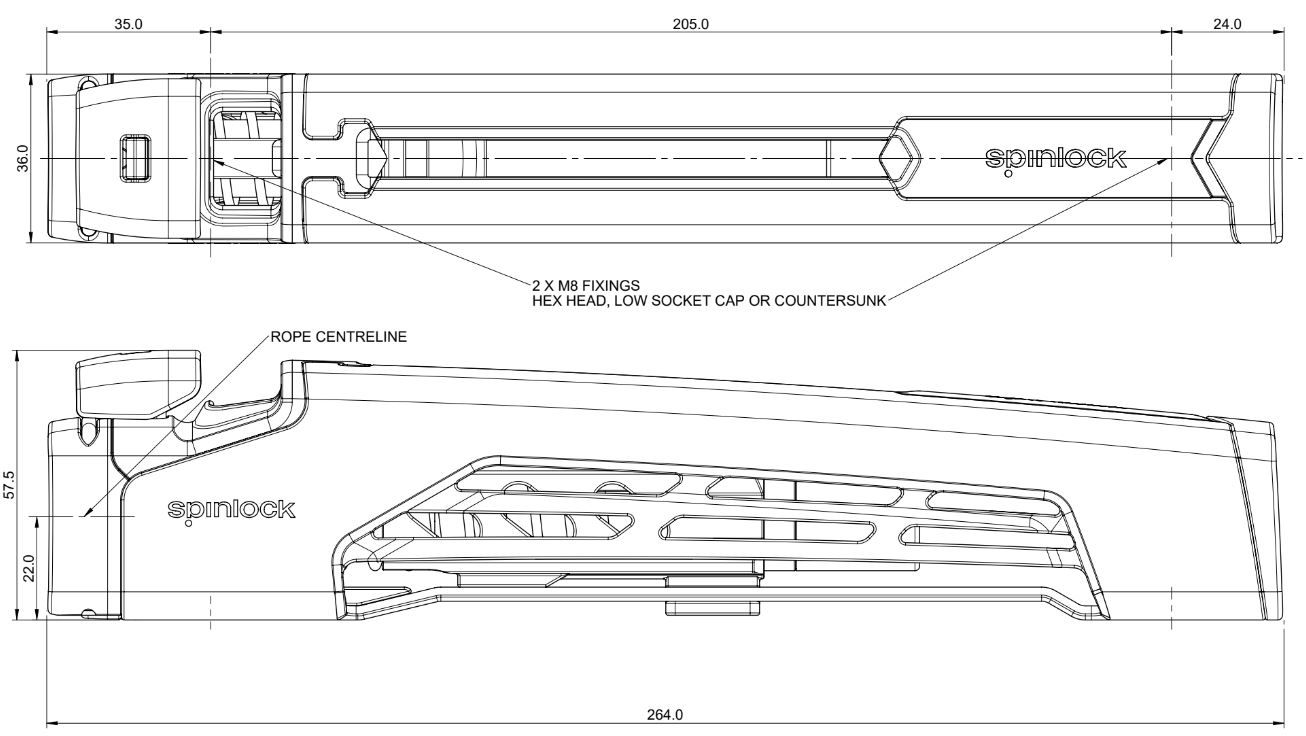

Ultra-lightweight mid-load rope holding.  Gentle on rope covers increases the lifecycle of your ropes.  Neat, retracting toggle for fingertip control of clutching power.  Push button clutch activation with lock-open indicator.  Fully enclosed body protects against accidental release.  Small footprint and very low profile with no handle rotation space required.  Simple, versatile installation, 2 fasteners for deck, bulkhead, rig or tunnel mounting.  Remote release capability.  Easy set up – no performance tuning required.

NOTE: Correct rope diameter is critical for the correct operation of these clutches. NZ rope manufacturers rope tend to be generous with their diameters compared to European and American manufactured lines that tend to be spot on. NZ manufactured rope generally require going up a size. An example is Fineline 10mm braid generally requires 11mm XTX clutches.

Code Image Product Details Enquire
XTX08-A
Spinlock XTX Clutch, Suits 8-12mm Lines

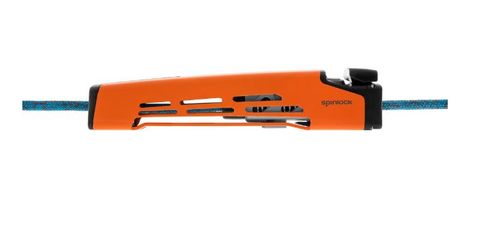

Line Ø 8mm, Amber, MWL up to 800kg
Make an Enquiry
XTX08-B
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 8mm, Black, MWL up to 800kg
Make an Enquiry
XTX08-L
Spinlock XTX Clutch, Suits 8-12mm Lines

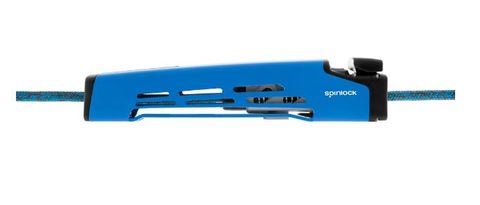

Line Ø 8mm, Blue, MWL up to 800kg
Make an Enquiry
XTX08-W
Spinlock XTX Clutch, Suits 8-12mm Lines

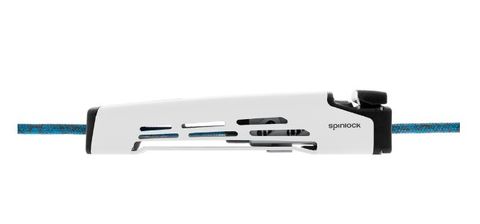

Line Ø 8mm, White, MWL up to 800kg
Make an Enquiry
XTX08-Y
Spinlock XTX Clutch, Suits 8-12mm Lines

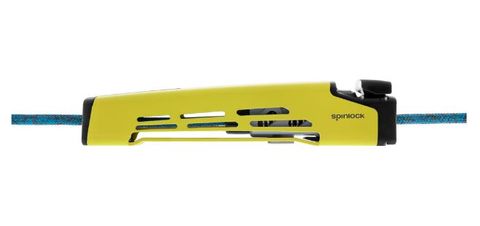

Line Ø 8mm, Yellow, MWL up to 800kg
Make an Enquiry
XTX09-A
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 9mm, Amber, MWL up to 900kg
Make an Enquiry
XTX09-B
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 9mm, Black, MWL up to 900kg
Make an Enquiry
XTX09-L
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 9mm, Blue, MWL up to 900kg
Make an Enquiry
XTX09-W
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 9mm, White, MWL up to 900kg
Make an Enquiry
XTX09-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 9mm, Yellow, MWL up to 900kg
Make an Enquiry
XTX10-A
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 10mm, Amber, MWL up to 1000kg
Make an Enquiry
XTX10-B
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 10mm, Black, MWL up to 1000kg
Make an Enquiry
XTX10-L
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 10mm, Blue, MWL up to 1000kg
Make an Enquiry
XTX10-W
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 10mm, White, MWL up to 1000kg
Make an Enquiry
XTX10-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 10mm, Yellow, MWL up to 1000kg
Make an Enquiry
XTX11-A
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 11mm, Amber, MWL up to 1100kg
Make an Enquiry
XTX11-B
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 11mm, Black, MWL up to 1100kg
Make an Enquiry
XTX11-L
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 11mm, Blue, MWL up to 1100kg
Make an Enquiry
XTX11-W
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 11mm, White, MWL up to 1100kg
Make an Enquiry
XTX11-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 11mm, Yellow, MWL up to 1100kg
Make an Enquiry
XTX12-A
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 12mm, Amber, MWL up to 1200kg
Make an Enquiry
XTX12-B
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 12mm, Black, MWL up to 1200kg
Make an Enquiry
XTX12-L
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 12mm, Blue, MWL up to 1200kg
Make an Enquiry
XTX12-W
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 12mm, White, MWL up to 1200kg
Make an Enquiry
XTX12-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
Line Ø 12mm, Yellow, MWL up to 1200kg
Make an Enquiry
Model Measured Diameter MWL Weight
XTX08 8mm +/- 0.5 (5/16") 800kg (1760lbs) 360g
XTX10 10mm +/- 0.5 (min 3/8") 1000kg (2200lbs) 365g
XTX12 12mm +/- 0.5 (max 1/2") 1200kg (2650lbs) 375g
