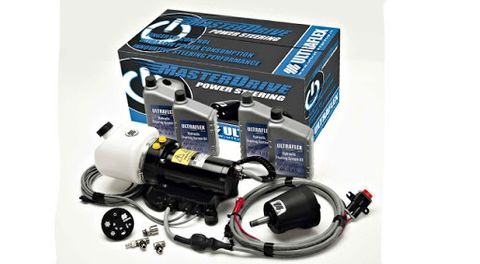

MasterDrive Inboard Steering Kit

HTML Editor - Full Version

MasterDrive™ SYSTEM FEATURES

- Eliminates torque at the steering wheel
- Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED).
- Automatically reverts to manual mode in case of power loss.
- High efficiency, low Amp draw
- The system always running permits immediate control in any sea conditions
- Equipped with safety switch ON/OFF (SMART BUTTON)
- Can be used on dual station installation
- Suitable for use with autopilot
- Low noise
- Voltage: 12VDC
- CE marked in conformity with ABYC P21, ISO 10592 safety standards
- Ignition protected (SAE J-1171 and UNI EN 28846)

Kits Conponents
- 1 single packaged KIT MD containing:|
- 1 UH-front or tilt mount Master Helm
- 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
- 1 UCMD User Interface
- 4 OIL 15 bottles of hydraulic oil
- 1 or 2 cylinders Depending on Kit

Not In Kit
- Hoses
- Tie Bars

Options
MD2: for dual station
X66 - 40613M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions.

Code	Product Details	Enquire
.42107B	MD32F, UC168 Cylinder	Make an Enquiry
.42108C	MD32F, UC215 Cylinder	Make an Enquiry
.42109D	MD40F, Front Mount,UC215 Cylinder	Make an Enquiry
.42110E	MD40F, Front Mount, UC293 Cylinder	Make an Enquiry
.42111F	MD32F, Dual UC116 Cylinders	Make an Enquiry
.42112G	MD40F, Front Mount, Dual UC168 Cylinders	Make an Enquiry

Specifications
