Jabsco Macerator Pumps

Jabsco Macerator Pumps

The Jabsco AC and DC macerator pump units are the ideal solution for emptying marine holding tanks when not in a discharge restricted area. Self priming to 5ft these pumps will empty a typical 30 gallon (115litre) holding tank in less than 3 minutes. It is recommended that holding tanks be flushed with several gallons of water after each pump out. This will reduce the possibility of a continued build up of sediment in the tank which could cause a potential blockage.

The 18590 Series are also the ideal solution for the emptying of fish box and livewell receptacles. Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank. If not installed in this format then it is beneficial to use the Jabsco macerator pump for evacuation due to its self-priming capabilities and also it's grinding properties.

Code Image Product Details Enquire
18590-2092
Jabsco Macerator Pumps
12V 38mm Inlet/25mm Outlet
Make an Enquiry
18590-2094
Jabsco Macerator Pumps
24V 38mm Inlet/25mm Outlet
Make an Enquiry
22130-2721
Jabsco Macerator Pumps
110/230AC 38mm Inlet/25mm Outlet
Make an Enquiry

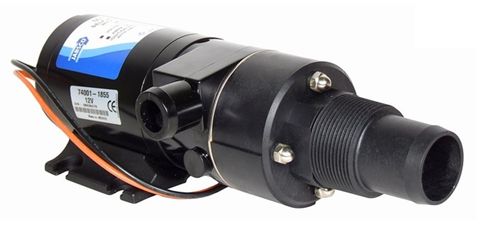

18590 Series

Connections: For 38mm (1 1/2”) Hose Barb inlet, 25mm (1”) Hose Barb discharge

Dimensions: 290mm long, 120mm wide, 95mm high

Fuse Size: 20A

Output: Up to 43LPM (11GPM) at 3m total head. Max recommended total head 6m 15 minute rated, for use with waste holding tanks up to 900 litres (200 gallons) capacity Grinds raw toilet waste to a uniform slurry for easy transfer and discharge Self-priming up to 0.6m vertical lift.

Actual Weight: 2.19Kg (Approx. 2.69 Kg packed)

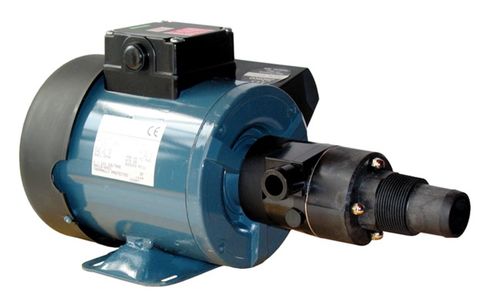

22130 Series

Connections: for 38mm (1 1/2”) inlet hose barb, 25mm (1”) Hose Barb outlet

Dimensions: 308.5mm long, 172mm wide, 206mm high

Grinding Capabilities: capable of grinding waste down to a particle size of 1/8" (3mm) max.

Priming: 5ft Wet / 4ft Dry

Actual Weight: 9.5Kg
