Hella Battery Switch
Hella Battery Switch.
Hella Heavy Duty Battery Switch – for trucks, buses and earth moving equipment. Complete with removable key. Replacement key available.

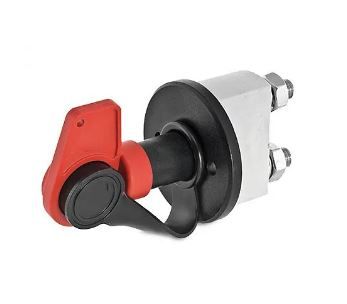

Battery Master Switch with sealing cap – suitable for cars and medium sized trucks, with a continuous rating of 250 amps. Provides effective protection against theft and fire in case of accidents. With sealing cap when not in use which doubles as a key holder.
| Part Number: | 6EK 001 559-001 | Battery Master Switch - Off/On - Heavy Duty |
| Mounting: | 22mm diameter opening | |
| Maximum Load: 12V | 5000A for 10 seconds | |
| Maximum Load: 24V | 2500A for 10 seconds | |
| Maximum Continuous Load: | 12/24V 100A continuous at a maximum ambient temperature of 60°C with 50mm2 lead connected with ring-type terminals. | |
| Termination: | 2 x 10mm studs | |
| Protection: | IPX4 | |
| Note: Switch not designed for marine applications. | ||
| Part Number: | 6EK 002 843-141 | Battery Master Switch - Off/On - with sealing cap |
| Mounting: | 22mm diameter opening | |
| Maximum Load: 24V | 2500A for 10 seconds | |
| Maximum Continuous Load: | 12/24V 250A | |
| Termination: | 2 x 10mm studs | |
| Protection: | IP65 | Protection against dust and water jets |
6EK 001 559-001 - Battery Master Switch - Off/On - Heavy Duty:
6EK 002 843-141 - Battery Master Switch - Off/On - with sealing cap:
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
6EK 002 843-141
|
|
Battery Master Switch - Off/On - with sealing cap
|
|
|

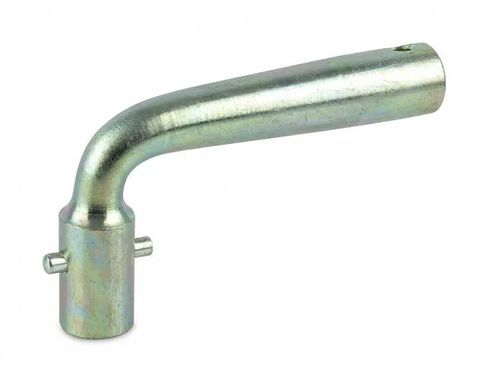

9SL 042 991-003
|
|
Replacement Battery Switch Handle - Heavy Duty
|
|
