Hella Marine DesignLine LED Module

Hella Marine DesignLine LED Module

HTML Editor - Full Version

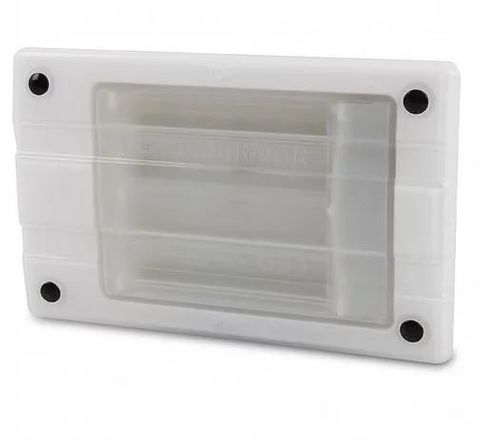

Hella Marine Designline LED Multivolt module designed to update existing bulb type Jumbo or Designline lamps. Features Ultra Wide Visibility Optics for significantly improved side visibility.

Code Image Product Details Enquire
2SB 959 040-701
HEL DESIGNLINE LED STOP/REAR LAMP VERT
Stop/Rear Position Lamp - Vertical Mount
2ZR 959 041-361
HEL DESIGNLINE LED REV LAMP HORIZ MNT, R
Reversing Lamp - Horizontal Mount - Right
2ZR 959 041-371
HEL DESIGNLINE LED REV LAMP HORIZ MNT, L
Reversing Lamp - Horizontal Mount - Left
Mounting: Four point recess mount
Voltage: Multivolt for optimum brightness at input voltages from 9 to 33 volts.
Power Consumption: Stop:  6W
Rear Position: 2W
Proection: Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
Cable Length: Pre-wired with 200mm of cable.
Compliance: ADR 49/00
