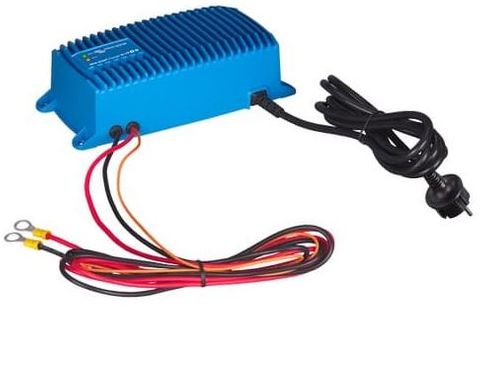

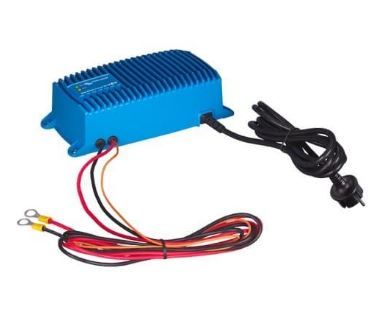

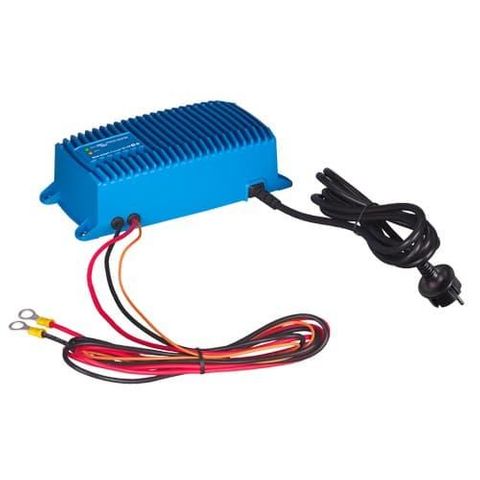

Victron Blue Smart IP67 Chargers
The Blue Smart IP67 Battery Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available. With Bluetooth, the functionality of the IP67 charger is enhanced and is similar to that of our IP22 and IP65 chargers. Water, oil or dirt will not damage the Blue Smart IP67 Charger. The casing is made of cast aluminium and the electronics are moulded in resin.
| IP67 Blue Smart Battery Charger: | 12/7 | 12/13 | 12/17 | 12/25 | 24/5 | 24/8 | 24/12 |
| Input Voltage range and frequency: | 180-265 VAC 45-65 Hz | ||||||
| Efficiency: | 93% | 93% | 95% | 95% | 94% | 96% | 96% |
| No Load power consumption: | 0.5W | ||||||
| Charge voltage absorption: | Normal: 14.4V High: 14.6V Li-on: 14.2V | Normal: 28.8V High: 29.2V Li-on: 28.4V | |||||
| Charge voltage float: | Normal: 13.8 V High: 13.8V Li-on: 13.35V | Normal: 27.6V High: 27.6V Li-on: 26.7V | |||||
| Charge voltage storage: | Normal: 13.2V High: 13.8V Li-on: na | Normal: 26.4V High: 26.4V Li-on: na | |||||
| Charge current, normal mode: | 7A | 13A | 17A | 25A | 5A | 8A | 12A |
| Charge current, LOW: | 2A | 4A | 6A | 10A | 2A | 3A | 4A |
| Charge algorithm: | 4-Stage Adaptive | ||||||
| Can be used as power supply: | Yes | ||||||
| Protection: | Battery reverse polarity (fuse) / Output short circuit / Over temperature | ||||||
| Operating temp range: | -20 to +60°C (full rated output to 40°C) Derate 3% per °C above 40°C | ||||||
| Humidity: | Up to 100% | ||||||
| Start interrupt option (Si): | Short circuit proof, current limit 0.5A Output voltage: max one volt lower than main output |
||||||
