Victron Smart Battery Protector

Victron Smart Battery Protector

HTML Editor - Full Version

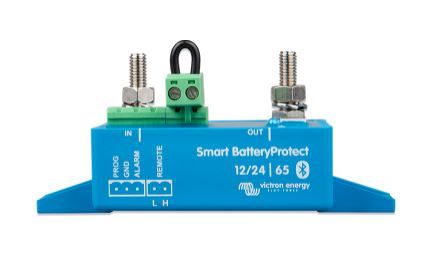

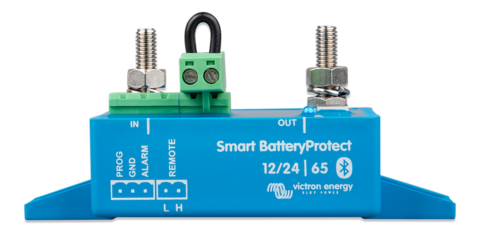

This is the Smart Version of the Victron Battery Protect.  Programming is made easier using a Bluetooth link to your phone or tablet.  This can be used as a stand alone device or as part of a control system for a Lithium Ion battery bank. The Victron Battery protect is a solid state relay and is used to disconnect the load from a battery when it is becoming over discharged.

Can be programmed to behave as a 12 or 24 volt solid state DC relay

The alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Code Image Product Details Enquire
BPR065022000
Victron Smart Battery Protector
12/24V 65A
Make an Enquiry
BPR110022000
Victron Smart Battery Protector
12/24V 100A
Make an Enquiry

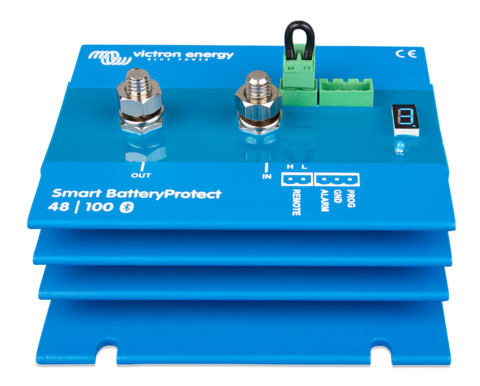

BPR110048000
Victron Smart Battery Protector
48V 100A
Make an Enquiry
BPR122022000
Victron Smart Battery Protector
12/24V 220A
Make an Enquiry
Smart Battery Protect: BP100 BP220
Maximum continuous Load: 100A 220A
Peak Current (during 30 seconds): 600A 600A
Operating Voltage range: 6-35V
Current consumption BLE On: When on: 1,4 mA When off or low voltage shutdown: 0,9 mA
Current consumption BLE Off: When on: 1,2 mA When off or low voltage shutdown: 0,7 mA
Alarm Output delay:  12 Seconds
Maximum load on alarm output: 50mA (short circuit proof)
Load disconnect delay: 90 seconds
Load reconnect delay: 30 seconds
Default thresholds: Disengage: 10, 5V or 21V
  Engage: 12V or 24V
Operating temperature range: Full Load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating: Electronics: IP67 (potted) / Connections: IP100
Connections: M8
