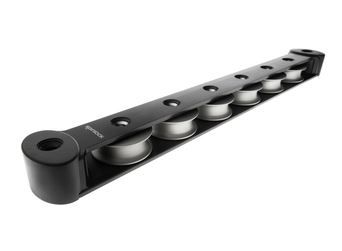

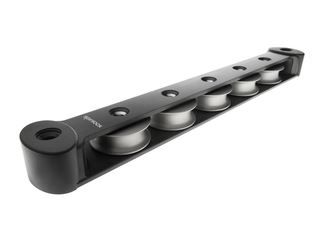

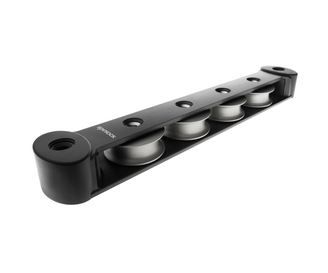

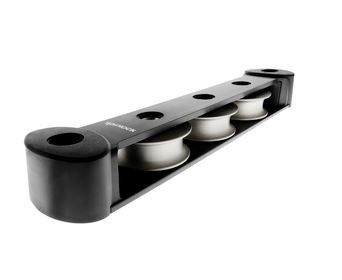

Spinlock TC50 Organiser
The Spinlock TC50 series of organisers lead multiple lines back from the mast to banks of powerclutches.
The TC50 organisers are specially developed for higher loads. Minimal overall length. Efficient bearings surface reduces winch effort and increases halyard life. Integral end fairings for safe side loading. Double stack versions available. Can be used as an Aft Organiser to divert lines from a clutch to a winch.

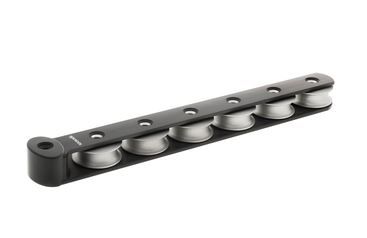

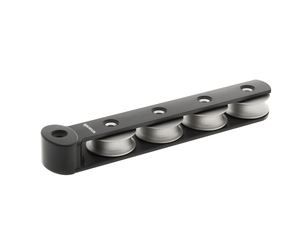

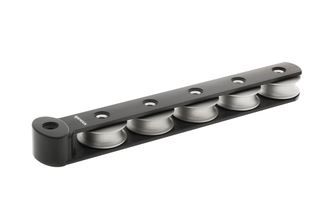

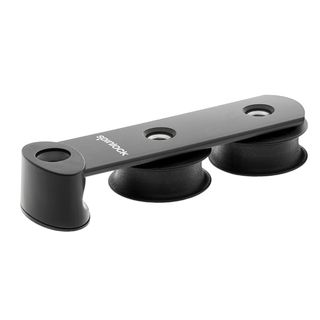

Available in Asymmetric and Symmetric versions.
Sheave Diameter / Type
TC50 - 50mm (2") alloy
TC50/D - 50mm (2") alloy
SWL per sheave
TC50 - 1500kg (3300lbs)
TC50/D - 1000kg (2200lbs) upper row
TC50/D - 1500kg (3300lbs) lower row
Total SWL per unit
TC50 - Number of sheaves x 750kg (1650lbs)
TC50/D - Number of sheaves x 500kg (1100lbs) upper row
TC50/D - Number of sheaves x750kg (1650lbs) lower row
Line Diameter
TC50 - Up to 14mm (9/16")
TC50/D - Up to 14mm (9/16")
Weights
TC50 - 575g (20.1oz) for a 2 sheave organiser
add 130g (4.6oz) per extra sheave
TC50/D - 750g (26.3oz) for a 2 sheave organiser
add 215g (7.5oz) per extra pair of sheaves
Fasteners
TC50 - M8 (5/16") CSK Supplied
TC50/D - M8 (5/16") CSK Supplied
