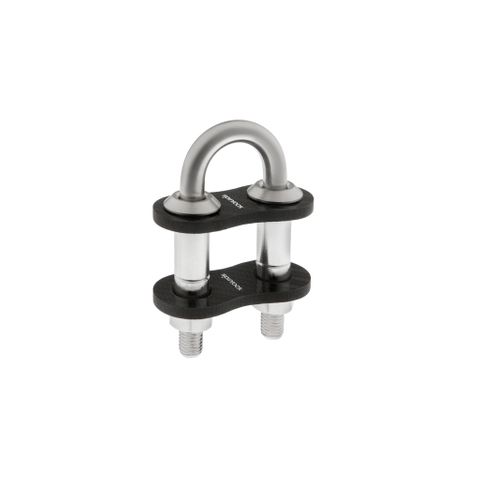

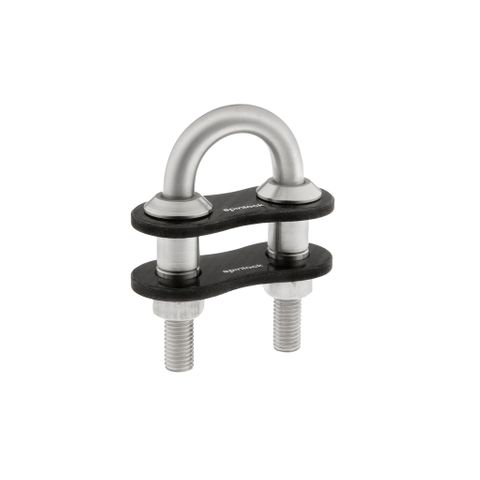

Spinlock high strength, low weight carbon PD Pad Eyes deck plates.

High quality 17-4PH stainless steel. Excellent strength to weight ratio. Increased through laminate bearing surfaces to minimise tearing. Significantly reduced weight to previous pad eye range. No dissimilar material issues. Improved shock loading resistance. Compact foot print and the ability to ‘nest’ together. Easily sealed.

Code Image Product Details Enquire
PD-6C
Spinlock Padeye
6mm
PD-8C
Spinlock Padeye
8mm
PD-10C
Spinlock Padeye
10mm
PD-12C
Spinlock Padeye
12mm
Model      SWL Vertical (kg) SWL 45 (kg) SWL Horizontal (kg)
PD-6C 2150 1290 1290
PD-8C 4000 2400 2400
PD-10C 7600 5250 5250
PD-12C 9750 6750 6750
