Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines

Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines

HTML Editor - Full Version

The XCS clutch offers a range of quality finishes to match your deck or rig. Aluminium sides for sustained higher load operation. Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics.

Mid to higher load rope holding. Reliable all round performance. Available in white coated, black anodised or silver polished alloy.

Available for a variety of line diameters. Ceramic Coated CAM and Base available for consistent holding & performance on modern lines. Extruded alloy handle with soft end grip. Secure handle locking in open and closed position. Easy access to fasteners. Handle labels supplied.

Code Image Product Details Enquire
XCS0610-1CB
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Black, Single
Make an Enquiry

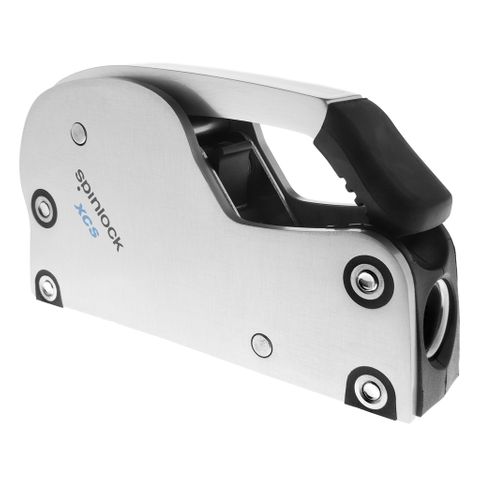

XCS0610-1CS
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Silver, Single
Make an Enquiry

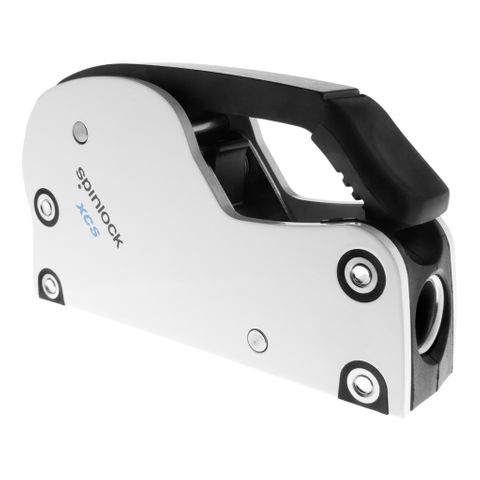

XCS0610-1CW
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
White, Single
Make an Enquiry

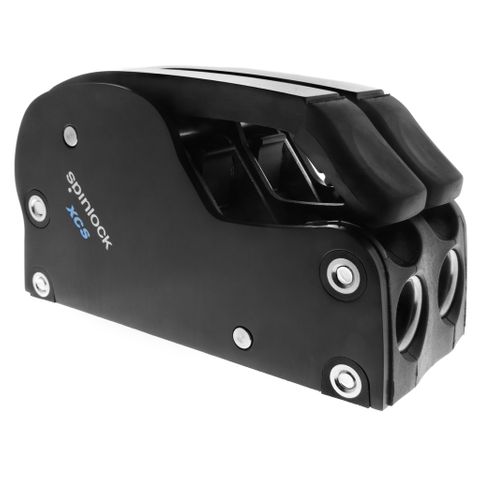

XCS0610-2CB
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Black, Double
Make an Enquiry

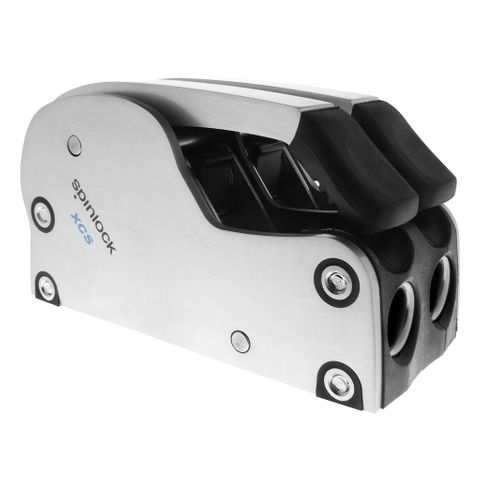

XCS0610-2CS
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Silver, Double
Make an Enquiry

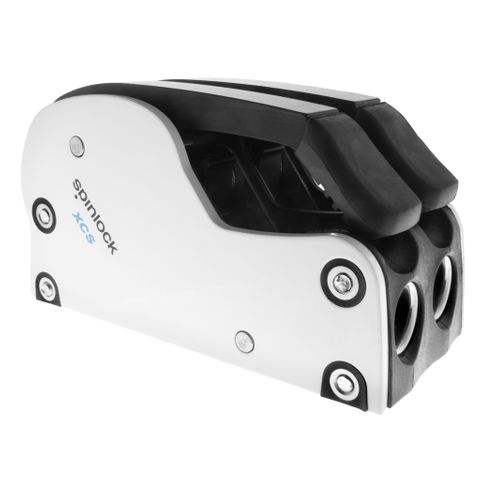

XCS0610-2CW
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
White, Double
Make an Enquiry

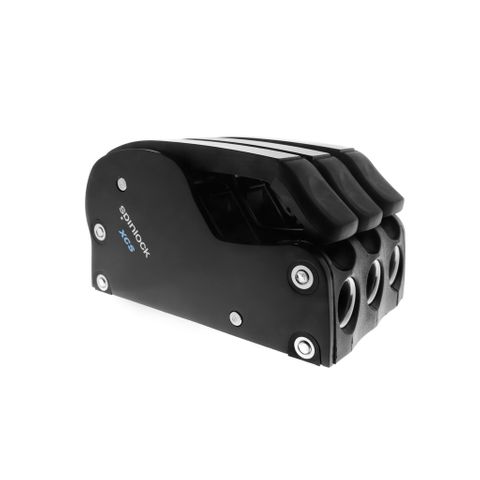

XCS0610-3CB
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Black, Triple
Make an Enquiry

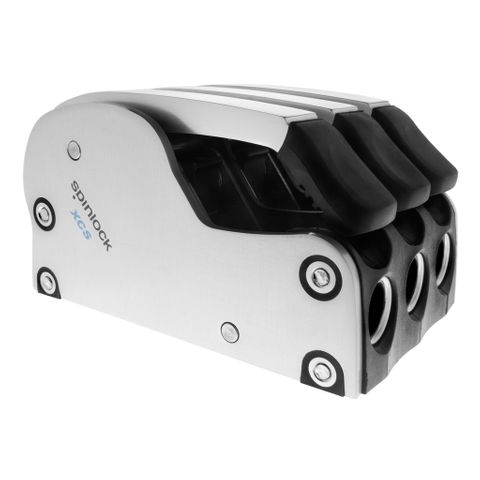

XCS0610-3CS
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Silver, Triple
Make an Enquiry

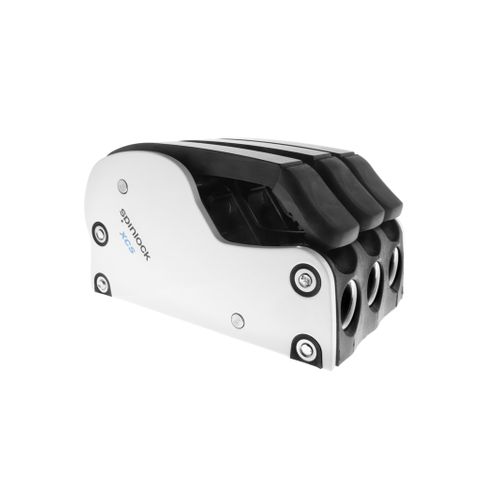

XCS0610-3CW
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
White, Triple
Make an Enquiry

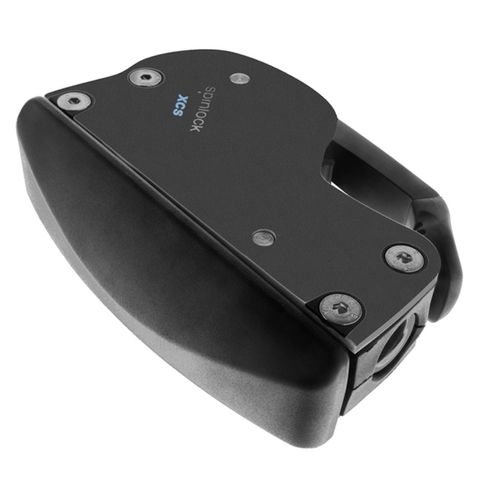

XCS0610-HPCB
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Black, Single, Side Mount Port
Make an Enquiry

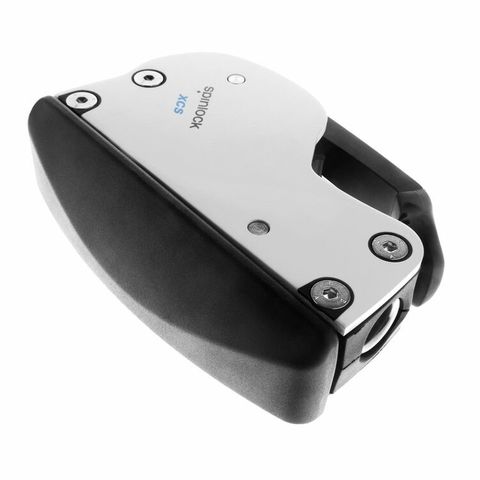

XCS0610-HPCS
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Silver, Single, Side Mount Port
Make an Enquiry
XCS0610-HPCW
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
White, Single, Side Mount Port
Make an Enquiry

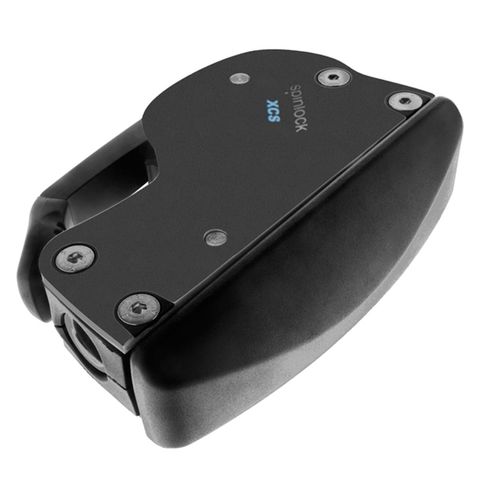

XCS0610-HSCB
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Black, Single, Side Mount Starboard
Make an Enquiry
XCS0610-HSCS
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
Silver, Single, Side Mount Starboard
Make an Enquiry
XCS0610-HSCW
Spinlock XCS Ceramic Cam Clutches, Suits 6-10mm Lines
White, Single, Side Mount Starboard
Make an Enquiry

XCS0610

Lines: 6mm - 10mm (1/4" - 3/8")
Loads up to 700kg (1543lbs)

XCS0610 - Small diameter, high load

For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line.

Side Mounting

Side mounting is usually the neatest solution for spars, side decks and coamings

Lock Open Cam XCS/L

Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed

Weights

  • XCS Single - 630g (22.1oz)
  • XCS Double - 1130g (39.6oz)
  • XCS Triple - 1610g (56.4oz)

Fasteners

  • XCS Single - 2 x M8 (5/16") CSK Head (not supplied)
  • XCS Double - 4 x M8 (5/16") CSK Head (not supplied)
  • XCS Triple - 6 x M8 (5/16") CSK Head (not supplied)
