Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines

Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines

HTML Editor - Full Version

The XCS clutch offers a range of quality finishes to match your deck or rig. Aluminium sides for sustained higher load operation. Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics.

Mid to higher load rope holding. Reliable all round performance. Available in white coated, black anodised or silver polished alloy.

Available for a variety of line diameters. Ceramic Coated CAM and Base available for consistent holding & performance on modern lines. Extruded alloy handle with soft end grip. Secure handle locking in open and closed position. Easy access to fasteners. Handle labels supplied.

Code Image Product Details Enquire
XCS0814-1CB
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Black, Single
Make an Enquiry

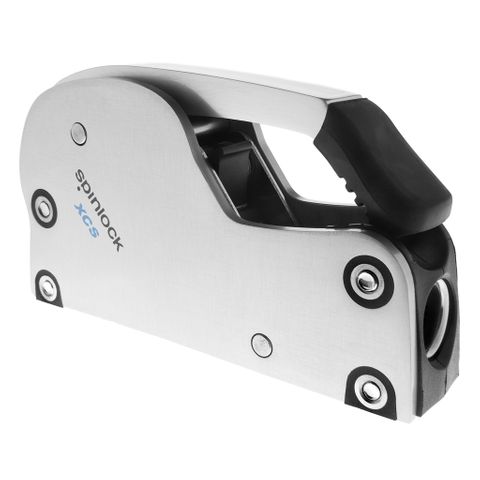

XCS0814-1CS
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Silver, Single
Make an Enquiry

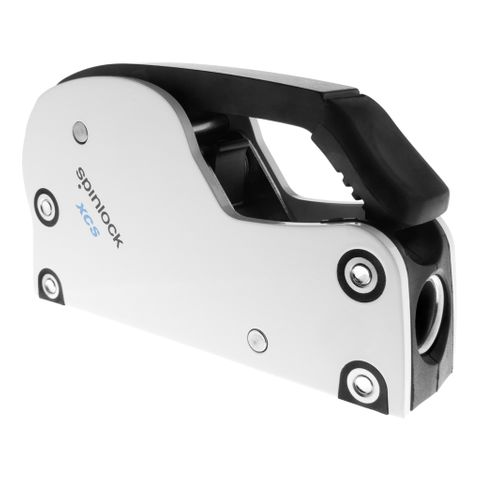

XCS0814-1CW
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
White, Single
Make an Enquiry

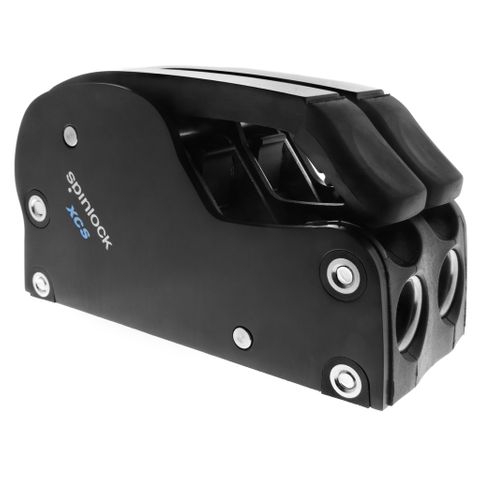

XCS0814-2CB
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Black, Double
Make an Enquiry

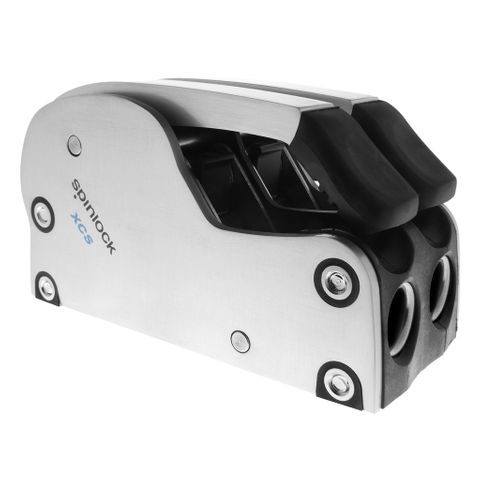

XCS0814-2CS
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Silver, Double
Make an Enquiry

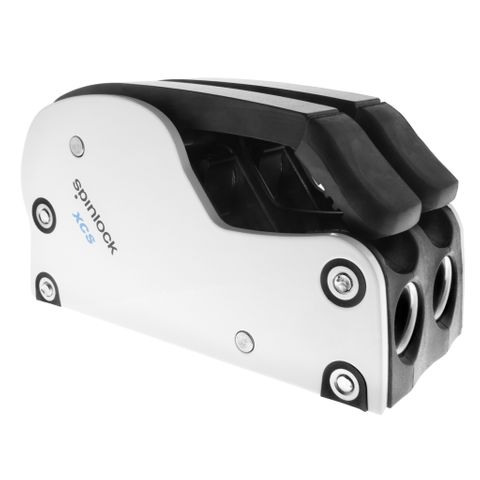

XCS0814-2CW
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
White, Double
Make an Enquiry

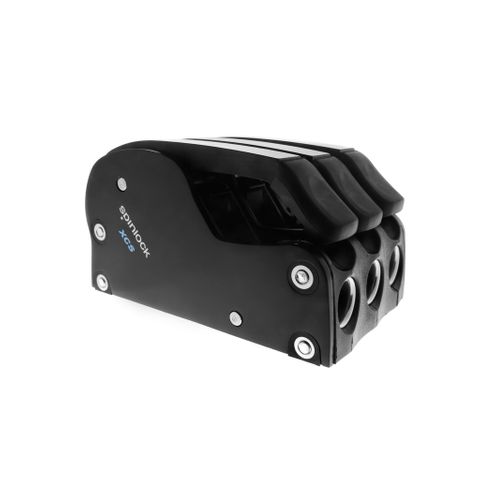

XCS0814-3CB
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Black, Triple
Make an Enquiry

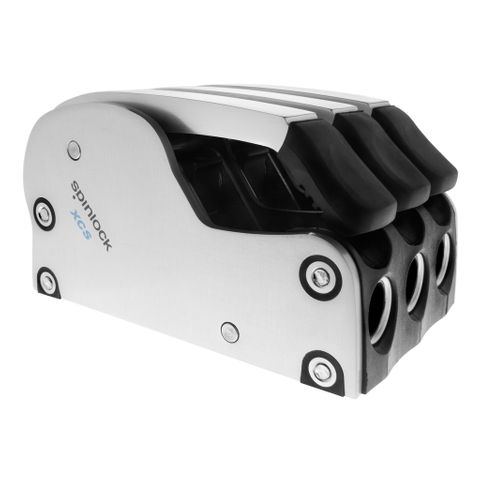

XCS0814-3CS
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Silver, Triple
Make an Enquiry

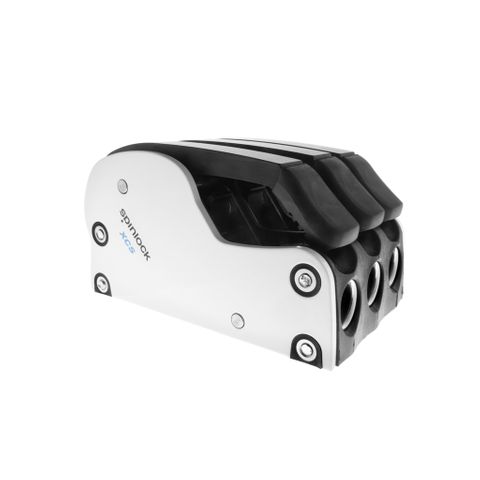

XCS0814-3CW
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
White, Triple
Make an Enquiry

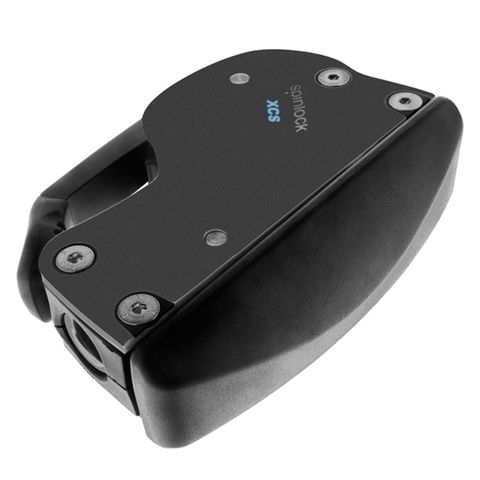

XCS0814-HPCB
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Black, Single, Side Mount Port
Make an Enquiry

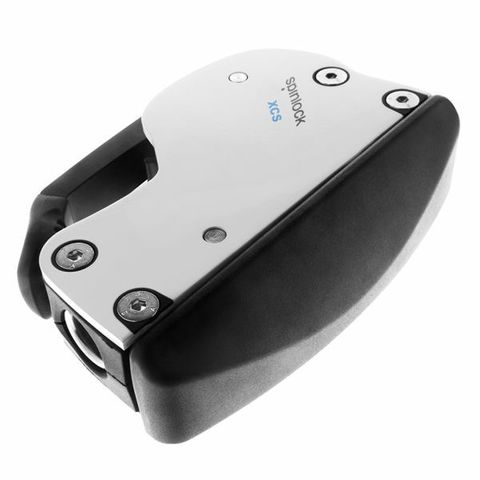

XCS0814-HPCS
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Silver, Single, Side Mount Port
Make an Enquiry
XCS0814-HPCW
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
White, Single, Side Mount Port
Make an Enquiry
XCS0814-HSCB
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Black, Single, Side Mount Starboard
Make an Enquiry
XCS0814-HSCS
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
Silver, Single, Side Mount Starboard
Make an Enquiry
XCS0814-HSCW
Spinlock XCS Ceramic Cam Clutches, Suits 8-14mm Lines
White, Single, Side Mount Starboard
Make an Enquiry

XCS0814

Lines: 8mm - 14mm (5/16" - 9/16")
Loads up to 1200kg (2640lbs)

Small diameter, high load

To upgrade from XCS0814, fit CAM-0610

Side Mounting

Side mounting is usually the neatest solution for spars, side decks and coamings

Lock Open Cam XCS/L

Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed

Weights

  • XCS Single - 630g (22.1oz)
  • XCS Double - 1130g (39.6oz)
  • XCS Triple - 1610g (56.4oz)

Fasteners

  • XCS Single - 2 x M8 (5/16") CSK Head (not supplied)
  • XCS Double - 4 x M8 (5/16") CSK Head (not supplied)
  • XCS Triple - 6 x M8 (5/16") CSK Head (not supplied)
