Veratron GO Range

Veratron GO Range

HTML Editor - Full Version

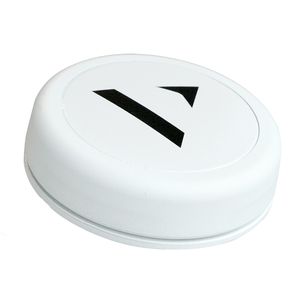

Veratron GO is a family of products featuring Veratron GO (GPS), Veratron GO Data (Bluetooth) and Veratron GO Plus+ (GPS and Bluetooth). Those 3 NMEA certified devices share the same look but their functions are not to be confused.

The Veratron GO is a GPS/GLONASS/Galileo receiver in one compact package. NMEA 2000 certified, it has easy plug-and-play installation that does not require any setup. Built for marine use, extreme weather conditions and continual outdoor exposure, this powerful little device is IPX7 protected, receives 12V DC power and connects to NMEA backbone via a standard NMEA Micro-C M12 5-pin connector. Accurate to 2.5 meters with a good sky view, this small instrument has high capabilities with 72 channel reception and a 10Hz refresh rate.

The Veratron GO Data embeds a NMEA 2000 to Bluetooth Low Energy gateway which allows you to repeat all the vessel’s digital data towards your smartphone or tablet. With 2.4 GHz band and 40 channels it has a maximum connection range of 160 meters (considering where the device is installed on your vessel) and up to 7 simultaneous connections are possible

The Veratron GO Plus+ combines all the features of the above devices in a single unit.

Now you have all your vessel data close to your fingertips!

Code Image Product Details Enquire
B00034901
Veratron GO Range
GPS Receiver
Make an Enquiry
B00041601
Veratron GO Range
BLE Bluetooth NMEA2000 Gateway
Make an Enquiry
B00041701
Veratron GO Range
GPS Reciever + BLE Bluetooth NMEA2000 Gateway
Make an Enquiry
Material

Acrylonitrile Styrene Acrylate (ASA)
Connector

NMEA 2000® Micro-C 5-pin M12
IP Protection Class

IPX7 according to IEC 60529
Supply Voltage

12V (NMEA 2000®)
NMEA 2000 LEN

2
Time To First Fix (TTFF)*

Cold start – 30 sec.
Position accuracy*

2.5 m with good sky view
GNSS augmentation*

SBAS-WAAS / EGNOS / MSAS / GAGAN
Reception channels*

72
Update rate*

10 Hz
Bluetooth interface**

BLE 5.0 – 2.4 GHz 40 channels



NMEA 2000 Data

PGN

Description
126992

System Time
129025

Position, Rapid Update
129026

COG & SOG, Rapid Update
129029

GNSS Position Data
129539

GNSS DOPs
129540

GNSS Satellites in View



* only veratron GO GPS and Plus+
** only veratron GO Data and Plus+
