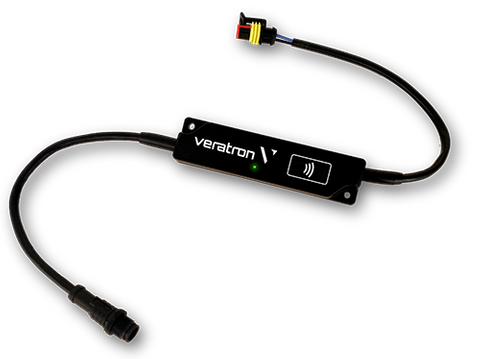

Veratron LinkUp Gateway with NFC

Veratron LinkUp Gateway with NFC

The Veratron LinkUp gateways bring your analogue sensors to the NMEA 2000 network era. All your boat’s data is now digitally available to be displayed on any NMEA 2000 enabled device.

The Temp and Press variant allows the connection of the combined Engine Oil sensor, which delivers both temperature and pressure with a single component.

The Resistive variant allows the connection of a wide array of sensors such as level sensors, temperature sensors, pressure sensors, and many more.

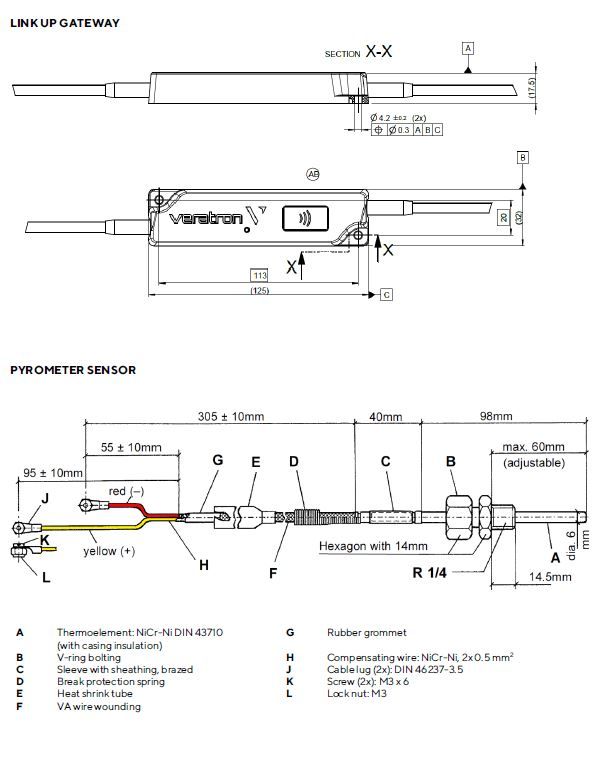

The Pyrometer variant allows the connection of the exhaust sensor thermocouple (N03-320-264). A 6 meters extension cable is included in the kit.

All NMEA 2000 certified! The standard Micro-C M12 connector perfectly interfaces with the NMEA 2000 network without the need of additional adapters. No dedicated power supply is required, the LinkUp gateway gets its power directly from the NMEA 2000 network. The embedded LED notifies you the status of the device and its configuration at any time, reducing commissioning and troubleshooting time. The configuration of the LinkUp devices has never been so easy. Launch the App and define your settings through the user-friendly interface, then simply hold your mobile device in proximity of the LinkUp to transfer the configuration. Thanks to the embedded passive antenna the configuration can be done powerless.

Code Image Product Details Enquire
B00042201
Veratron LinkUp Gateway with NFC
Resistive to NMEA2000
Make an Enquiry
B00042301
Veratron LinkUp Gateway with NFC
Pyrometer to NMEA2000
Make an Enquiry
B00042401
Veratron LinkUp Gateway with NFC
J1939 to NMEA2000
Make an Enquiry
B00070501
Veratron LinkUp Gateway with NFC
Temperature/Pressure to NMEA2000
Make an Enquiry
Operating voltage

6 – 16.5 V
Nominal voltage

12 V (from NMEA 2000® network)
Power consumption

≤ 100 mA
NMEA 2000® LEN

2
Protection class

IP X7 according to IEC60529 (when connected)
Operating temperature

-30°C to 80°C
Flammability

UL94-HB
Measurement range

100 – 900 °C
250 – 1650 °F
LinkUp sensor cable length

25 cm
NMEA 2000® cable length

25 cm
LinkUp Sensor-side plug

TE AMP Superseal 1.5 2 pins - Female
Housing: 282080-1
Terminals: 282403-1 (2x)
Sealing: 281934-2 (2x)

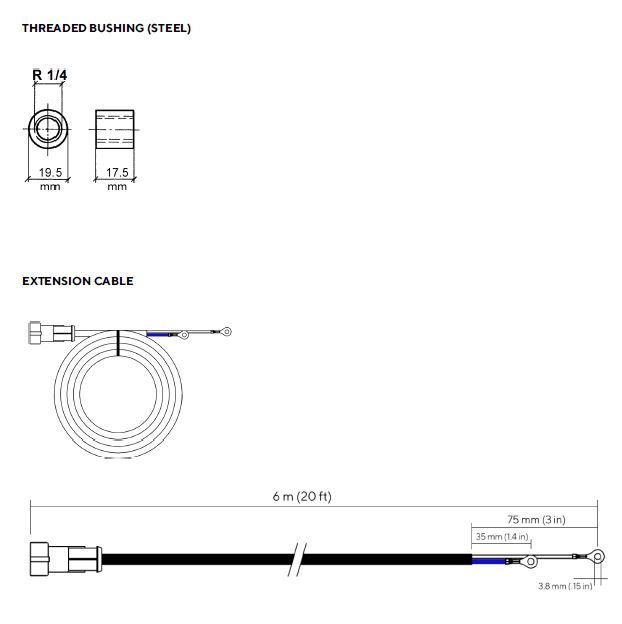

Extension cable LinkUp-side plug

TE AMP Superseal 1.5 2 pins - Male
Housing: 282104-1
Terminals: 282404-1 (2x)
Sealing: 281934-2 (2x)
NMEA 2000® plug

DeviceNet Micro-C M12 5 pins - Male
Compliance

CE, Reach, RoHS, UL94, ISO 8846:1990
