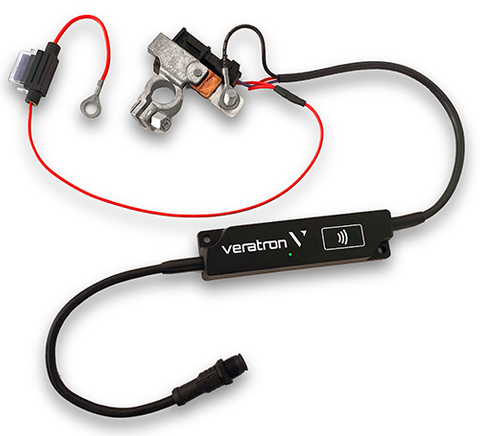

Veratron LinkUp Intelligent Battery Sensor

Veratron LinkUp Intelligent Battery Sensor

HTML Editor - Full Version

The veratron LinkUp gateways bring your analogue sensors to the NMEA 2000 network era. All your boat’s data is now digitally available to be displayed on any NMEA 2000 enabled device.

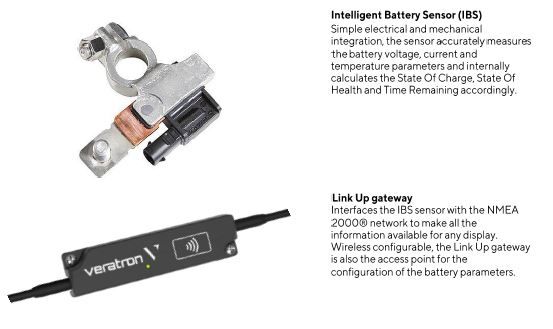

The 12V IBS variant allows the connection of the 12V Intelligent Battery Sensor to keep you batteries always under control. In addition to Voltage, Current and Temperature, the IBS system reliably deliver State of Charge, State of Health and Autonomy information to your NMEA 2000 system. All NMEA 2000 certified! The standard Micro-C M12 connector perfectly interfaces with the NMEA 2000 network without the need of additional adapters. No dedicated power supply is required, the LinkUp gateway gets its power directly from the NMEA 2000 network. The embedded LED notifies you the status of the device and its configuration at any time, reducing commissioning and troubleshooting time. The configuration of the LinkUp devices has never been so easy. Launch the App and define your settings through the user-friendly interface, then simply hold your mobile device in proximity of the LinkUp to transfer the configuration. Thanks to the embedded passive antenna the configuration can be done powerless!

Code Image Product Details Enquire
B00042501
Veratron LinkUp Intelligent Battery Sensor
12V 250A
Make an Enquiry
B00042502
Veratron LinkUp Intelligent Battery Sensor
12V 500A
Make an Enquiry
B00070401
Veratron LinkUp Intelligent Battery Sensor
24V 250A
Make an Enquiry
Operating voltage

6–16.5 V
Operating current (permanent)

+155 A
Maximum current

+1500 A (500ms)
Protection class

IP 6K7
Power consumption

<15mA (normal mode)

<120µA (sleep mode)
Max battery capacity

249 Ah
Supported battery types

Gel, AGM, Flooded (Lead)
Operating temperature

-40°C to 115°C
LinkUp plug

Hirschmann
Grounding bolt

M8
