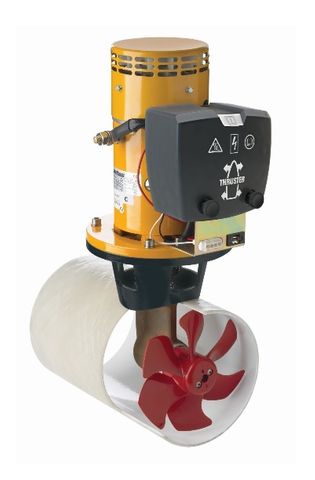

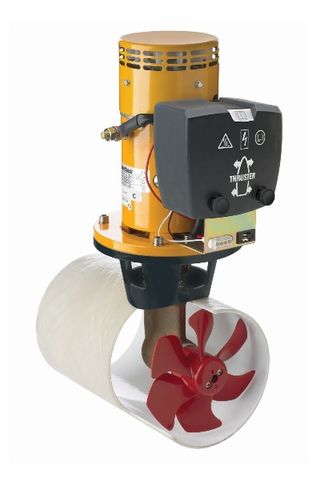

Vetus Bow Thruster Kit - 75KGF 185mm Tunnel
Advantages of VETUS bow thrusters
- A single propeller creates less flow disturbance in the tunnel
- The VETUS unique propeller blade design minimises cavitation noise
- Spiral gears minimise transmission noise
- The use of a flexible coupling between tail piece and motor eliminates vibration
- All VETUS systems use a streamlined tail piece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install, supplied with clear installation and operation instructions
- VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
- All VETUS manoeuvring systems meet the EMC requirements
VETUS BOW75D Maintenance and Warranty Manual

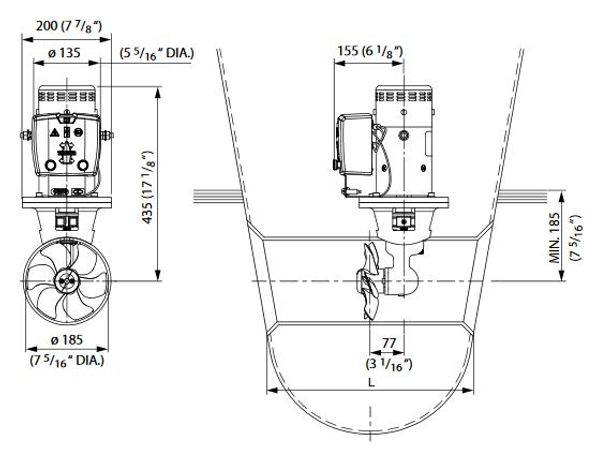

VETUS BOW75D Drill Pattern
VETUS BOW7512D-BOW7524D Operation Manual
Proportional: No
Thrust: 80/85N/KGF
Power: 4.4KW
Internal Tunnel Diameter: 185MM
Weight: 26KG
Voltage: 12/24V
Current Consumption: 500/280A
Continuous Operating Time: 2/3MIN
Ignition Protected: No
Retractable: No
Extended Runtime: No
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
BOW7512D
|
|
12VDC Thruster Only No Tunnel, Controller or Wiring Harness
|
|
|
BOW7524D
|
|
24VDC Thruster Only No Tunnel, Controller or Wiring Harness
|
|
|
.BOW75D12 JA
|
|

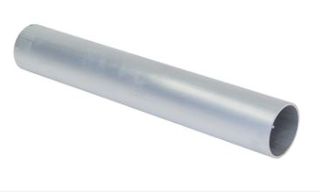

12VDC Thruster, Aluminium Tunnel 1m, Joystick Control
|
|
|
.BOW75D12 TA
|
|
12VDC Thruster, Aluminium Tunnel 1m, Touchpad Control
|
|
|
.BOW75D12 JG
|
|

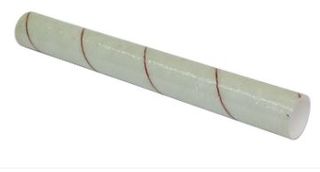

12VDC Thruster, GRP Tunnel 1m, Joystick Control
|
|
|
.BOW75D12 TG
|
|
12VDC Thruster, GRP Tunnel 1m, Touchpad Control
|
|
|
.BOW75D24 JA
|
|
24VDC Thruster, Aluminium Tunnel 1m, Joystick Control
|
|
|
.BOW75D24 TA
|
|
24VDC Thruster, Aluminium Tunnel 1m, Touchpad Control
|
|
|
.BOW75D24 JG
|
|
24VDC Thruster, GRP Tunnel 1m, Joystick Control
|
|
|
.BOW75D24 TG
|
|
24VDC Thruster, GRP Tunnel 1m, Touchpad Control
|
|
