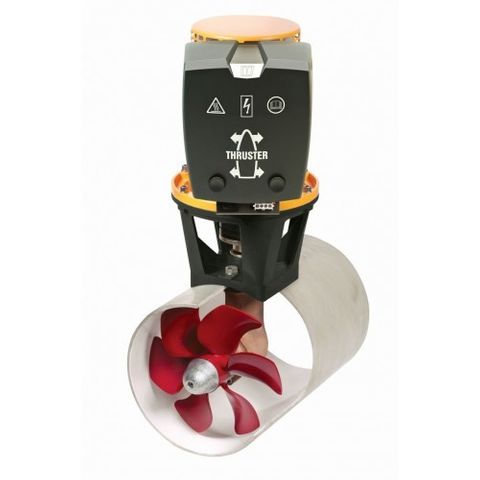

Vetus Bow Thruster Kit - 160KGF 250mm Tunnel
Advantages of VETUS bow thrusters
- A single propeller creates less flow disturbance in the tunnel
- The VETUS unique propeller blade design minimises cavitation noise
- Spiral gears minimise transmission noise
- The use of a flexible coupling between tail piece and motor eliminates vibration
- All VETUS systems use a streamlined tail piece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install, supplied with clear installation and operation instructions
- VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
- All VETUS manoeuvring systems meet the EMC requirements
VETUS BOW160D24 Maintenance and Warranty Manual

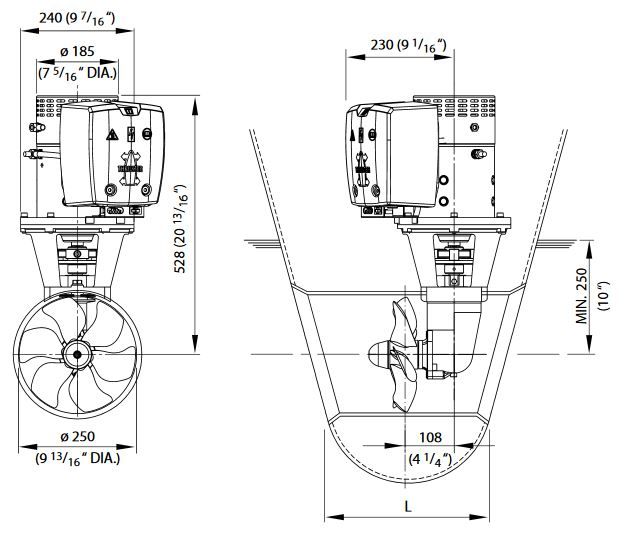

VETUS BOW160D24 Drill Pattern
VETUS BOW160D24 Operation Manual
Proportional: No
Thrust: 160N/KGF
Power: 7KW
Internal Tunnel Diameter: 250MM
Weight: 37KG
Voltage: 24V
Current Consumption: 540A
Continuous Operating Time: 4.5MIN
Ignition Protected: No
Retractable: No
Extended Runtime: No
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
BOW16024D
|
|
24VDC Thruster Only No Tunnel, Controller or Wiring Harness
|
|
|
.BOW160D24 JA
|
|
24VDC Thruster, Aluminium Tunnel 1m, Joystick Control
|
|
|
.BOW160D24 TA
|
|
24VDC Thruster, Aluminium Tunnel 1m, Touchpad Control
|
|
|
.BOW160D24 JG
|
|
24VDC Thruster, GRP Tunnel 1m, Joystick Control
|
|
|
.BOW160D24 TG
|
|
24VDC Thruster, GRP Tunnel 1m, Touchpad Control
|
|
