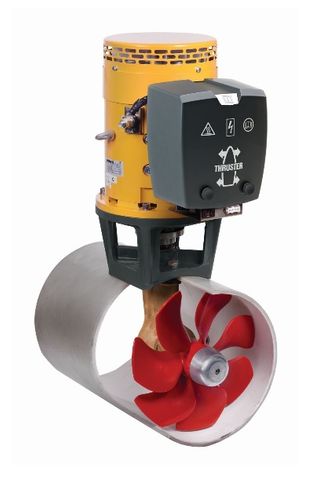

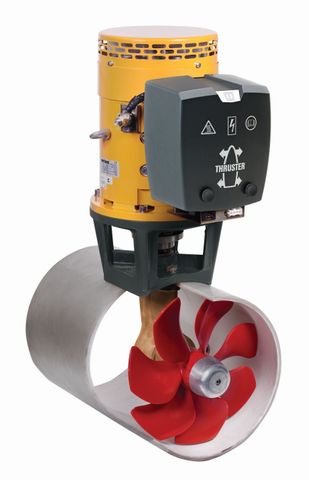

Vetus Bow Thruster Kit - 285KGF 300mm Tunnel
Manoeuvring is not always a straightforward operation, especially in high wind or tidal situations. That is why bow and stern thrusters have become the natural choice to allow manoeuvrability of your powerboat or yacht in all weather conditions.
The Vetus BOW285 thruster provides 285KGF thrust force and is suitable for boats from 22 to 29 meters.
The advantage of the Vetus bow thruster is a single propeller system which creates less flow disturbance in the tunnel. The Vetus unique propeller blade design minimizes cavitation noise.
The BOW285 Kit is supplied complete with:
BOW285 48VDC Thruster
Tunnel - GRP or Aluminium 300mm x 1500mm
Control Panel - Joystick or Touch
Wiring Harness 16m
Fuse & Holder
VETUS BOW285D48 Maintenance and Warranty Manual
VETUS BOW285D48 Drill Pattern
VETUS BOW285D48 Operation Manual and Installation Instructions
Proportional: No
Thrust: 285N/KGF
Power: 17.5KW
Internal Tunnel Diameter: 300MM
Weight: 68KG
Voltage: 48V
Current Consumption: 560A
Continuous Operating Time: 2.5MIN
Ignition Protected: No
Retractable: No
Extended Runtime: No
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
BOW28548D
|
|
48VDC Thruster Only No Tunnel, Controller or Wiring Harness
|
|
|
.BOW285D48 JA
|
|
48VDC Thruster, Aluminium Tunnel 1.5m, Joystick Control
|
|
|
.BOW285D48 TA
|
|
48VDC Thruster, Aluminium Tunnel 1.5m, Touchpad Control
|
|
|
.BOW285D48 JG
|
|
48VDC Thruster, GRP Tunnel 1.5m, Joystick Control
|
|
|
.BOW285D48 TG
|
|
48VDC Thruster, GRP Tunnel 1.5m, Touchpad Control
|
|
