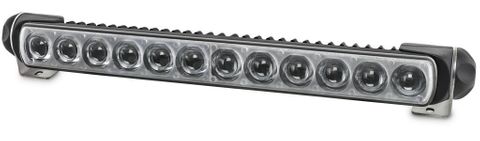

Hella Light Bar 350
HELLA’s popular LED Light Bar 350 is now also available with a heavy duty bracket that will suit most vehicle installations. It is easy to mount and adjust and therefore ideal for numerous applications. Made of stainless steel, the new heavy duty bracket is ultra durable and non corrosive and the perfect choice for on and off road and applications in harsh environments.
The dust and waterproof Light Bar comes in two different beam patterns – High Beam (Ref. 20 with 1 lux at approx. 320 metres) and Pencil Beam (Ref. 30 with 1 lux at approx. 380 metres).
The hermetically sealed and submersible Light Bar features a Multivolt™ circuit for optimum brightness at input voltages from 9 to 33 volts. It is fully road legal with ECE approval and comes with a comprehensive 5 year warranty, making the light bar the ideal choice for applications where durability and reliability are essential.
- 12 high performance automotive grade LEDs
- Approved for use in New Zealand and Australia
- Maximum luminous intensity of 145,000 candela
- Low power consumption
- Highly adaptable mounting system
- Available with stainless steel mounting brackets
- Thermally conductive non-metal housing
- Light weight of only 700g
Mounting: Horizontal mounting. Upright or pendant.
Voltage: Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.
Power Consumption: 25W
Maximum Luminous Intensity:
- 1395HD: 96,000 candela
- 1396HD: 145,000 candela
Protection:
- Reverse polarity and transient spike protection.
- IP 6K7 (Protection against dust and temporary water immersion)
- IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

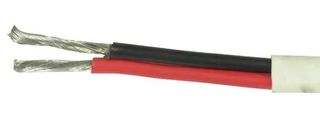

Cable Length: Pre-wired with 2.5m of tinned multi-core cable
Spare Parts:
- 8HG 958 128-811: Double stainless-steel mounting feet (one pair)
- 8HG 958 139-071: Single spare end bracket kit
Compliance:

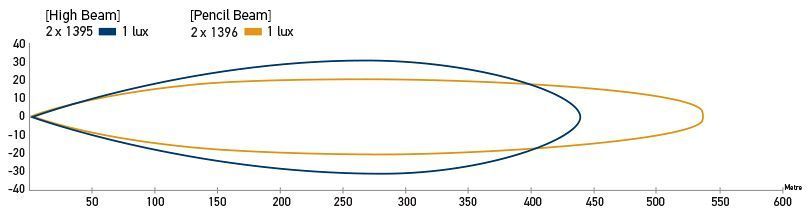

LED Light Bar 350. Recorded with two lamps. Distance in metres.

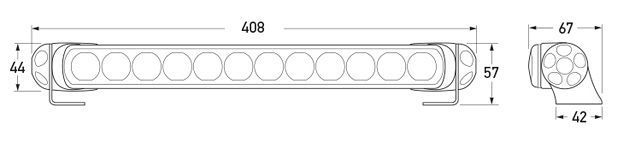

LED Light Bar 350 - HD Bracket. All dimensions in mm.
