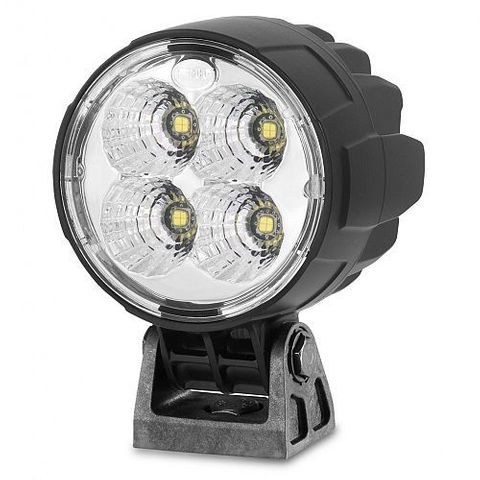

Hella Marine Module 90 LED Floodlights
The Module 90 LED is a robust work lamp in a universal, attractive design. The black aluminium housing features cooling fins which ensure the required heat dissipation from the 4 high-power LEDs. In addition, temperature sensors protect the work lamp from overheating.
Thanks to its powerful light output of 3400 lumens, the module 90 LED can replace Xenon work lamps, despite consuming just 40W of power. This makes this LED work lamp ideal for use on battery operated vehicles or on vehicles where the alternator is already under a heavy load.
The light is distributed by a specially developed, multifaceted reflector, thus ensuring homogeneous illumination. The light can be operated at both 12V or 24V DC. The integrated electronics protect the device in the event of a polarity reversal and guarantee constant brightness, even when operating with voltage fluctuations between 9 and 33 volts DC. At 6500°K, the light from the LED work lamp is very similar to daylight. This helps to distinguish colours more easily in the dark, and thus facilitate the human eye’s sensory perception task.
Mounting:
- Upright or pendant
- Swivel mount 9.1530.07 available as an optional extra.
- Detachable pipe socket base also available.
Voltage: Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.
Power Consumption: 40W
Actual Light Output: 3400 lumen
Protection
- Reverse polarity, transient spike and over voltage protection
- IP 6K8 (Protection against dust and prolonged water immersion)
- IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)
- Advance thermal management
Cable Length: Supplied with 2.0m of sheathed cable with DT plug
Spare Part:
- 9.1557.05: Plug and lead 0.75mm2
- 9.1549.05: Plug and lead 1.25mm2
Compliance:

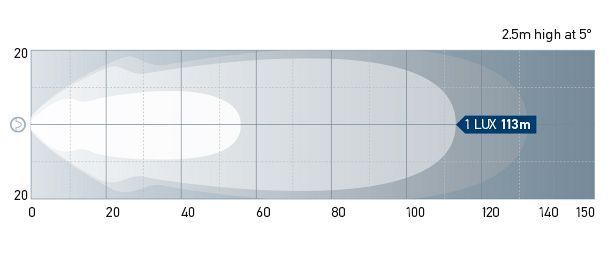

Beam pattern: 1564 - Close Range.
Beam pattern: 1564-LR - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
All dimensions in mm.
