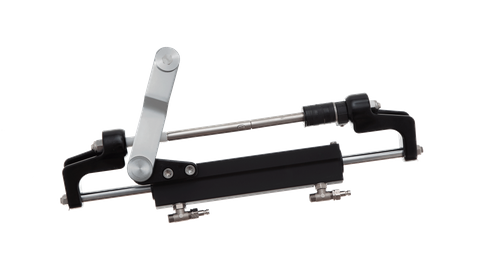

Ultraflex Cylinder Front Mount 175HP

Ultraflex Cylinder Front Mount 175HP

HTML Editor - Full Version

Ultraflex UC95-OBF front mount cylinder for outboard engines up to 175HP total. Balanced - the number of turns lock-to-lock is equal port to starboard or vice-versa. Depending on the applications on the outboard engines the UC95-OBF cylinder is available in 3 versions.

Features:

  • Adjustable boss style fittings for easy installation.
  • High resistance stainless steel connection bolt (ULTRABOLT).
  • Innovative Design (Patented). Split and pinned cylinder mounting rod for easy installation and bushings to prevent friction with engine tilt tube.

Specifications:

  • Volume 94 cc - 5.7 cu.in
  • Output force 278 kg - 613 lbs
  • Inside diameter 30 mm - 1.18"
  • Stroke 186 mm - 7.3"
  • 3/8" (9,5 mm) fittings For high pressure flex hose
  • Bleed fittings DN5 quick connect

Code Image Product Details Enquire
43515D
Ultraflex Cylinder Front Mount 175HP
UC95-OBF/1
Make an Enquiry
43516F
Ultraflex Cylinder Front Mount 175HP
UC95-OBF/3
Make an Enquiry
43535K
Ultraflex Cylinder Front Mount 175HP
UC95-OBF/2
Make an Enquiry
