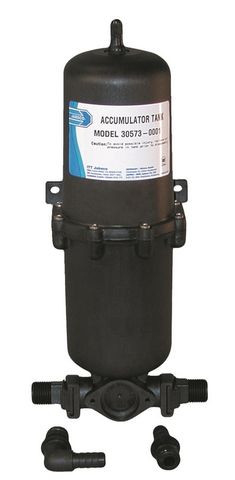

Accumulator Tank
Accumulator Tank for a quieter smoother flow water pressure system.
Internal membrane allows universal mounting - may be mounted in any attitude.
30573-0000
Dimensions: 340mm long, 120mm wide, 110mm deep
Output Volume: nominal 1L, working capacity up to approx. 0.5L
Plastic vessel with internal membrane. May be mounted in any attitude
Compact size for small pressure systems (typically 1 - 2 outlets).
Supplied with 2 snap-in connectors for 13mm (½”) bore hose
Packaged Dimensions: L:37.00 x H:12.00 x W:13.00cm
Actual Weight: 0.80Kg (Approx. 1.10Kg packed)
30573-0003
Dimensions: 214mm long, 119mm wide, 110mm deep
Output Volume: nominal 0.6L, working capacity up to approx. 0.3L
Plastic vessel with internal membrane. May be mounted in any attitude
Compact size for small pressure systems (typically 1 - 2 outlets).
Supplied with 2 snap-in connectors for 13mm (½”) bore hose
Actual Weight: 0.61Kg (Approx. 0.86Kg packed)
23240-2000
Dimensions: 330mm long, 200mm wide, 220mm deep
Output Volume: nominal 8L, working capacity up to approx. 4L
Enameled steel vessel with internal membrane. May be mounted in any attitude.
Packaged Dimensions: L:26.00 x H:27.00 x W:34.00cm
Actual Weight: 3.68Kg (Approx. 4.18Kg packed)
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
30573-0003
|
|
0.6L, 13mm 1/2 Bore Hose or Threaded Connections, Plastic
|
|
|
30573-0000
|
|
1L, 13mm, 1/2 Bore Hose or Threaded Connections, Plastic
|
|
|
23240-2000
|
|
8L, 3/4 BSP Threaded Connections, Enamel
|
|
