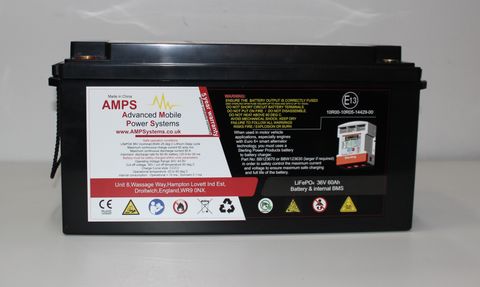

36V AMPS LiFePO4 Lithium Batteries
Perfect for trolling motors or Golf Carts, these 36V lithium batteries offer a simple installation without the need for series connection and balancing of 12V batteries. The onboard BMS allows monitoring as the bank as a whole and simply but effectively ensures all cells are balanced to give the longest possible runtime.
The AMPS LiFePO4 Lithium Batteries offer twice the run-time and are nearly half the weight of similar-sized lead acid batteries whilst retaining the same form factor due to an IP rated flame retardant plastic case making them a direct replacement for many AGM, Lead Acid and Gel batteries. With a built-in Battery Management System, safety shut-down and their own bluetooth battery monitoring app the AMPS LiFePO4 batteries are a sophisticated and durable Lithium Battery that can safely be linked together in parallel to increase amp/hour capacity and to increase charge and discharge rates.
For many years people have wanted a simple, easy solution to installing lithium batteries in the automotive industry – Simply connect to a Sterling Battery to Battery charger and charge to the correct voltage and current profile with no hassles.
AMPS Range cycles at 25 degrees Celsius -
• 2000 cycles to 100% DoD
• 6000 cycles at 50% DoD
• 8500 cycles at 30% DoD
Model | LIFEPO4 36V 60AH | LIFEPO4 36V 100AH | |
All integrated BMS and Safety Shutdown | 60Ah | 100Ah | |
Nominal Voltage | 38.4v | ||
Nominal Amp Hrs | 60 | 100 | |
Nominal Wh Power | 2304 | 3840 | |
Max. Cont. Charge Rate AMPS | 30 (0.5C) | 50 (0.5C) | |
Max. Cont. Discharge Rate AMPS | 60 (1C) | 100 (1C) | |
Intermittent discharge rate 30 seconds | 120 (2C) | 200 (2C) | |
Max Charge Voltage V | 43.8v | 43.8v | |
Recommended Charge and Float V | 43.2V Charge, 41.4V Float | ||
Cut Off Voltage | 30V | ||
Cut Off Termpature | 50 Deg C | ||
Charge Curve Style | CC/CV | ||
Operational Temperature | -30 to 60 Deg C | ||
Internal Consumption | Operational = 10mA, Dormant = 0.1mA | ||
E13 Marking | 10R00-10R05-14430-00 | ||
Weight kg | 22 | 35 | |
Battery must be safely charged within units parameters. Cell type Prismatic. Fire retardant plastic case |
